QIDI Box: A Complete Guide to QIDI's New Multi-Color and Filament Management System

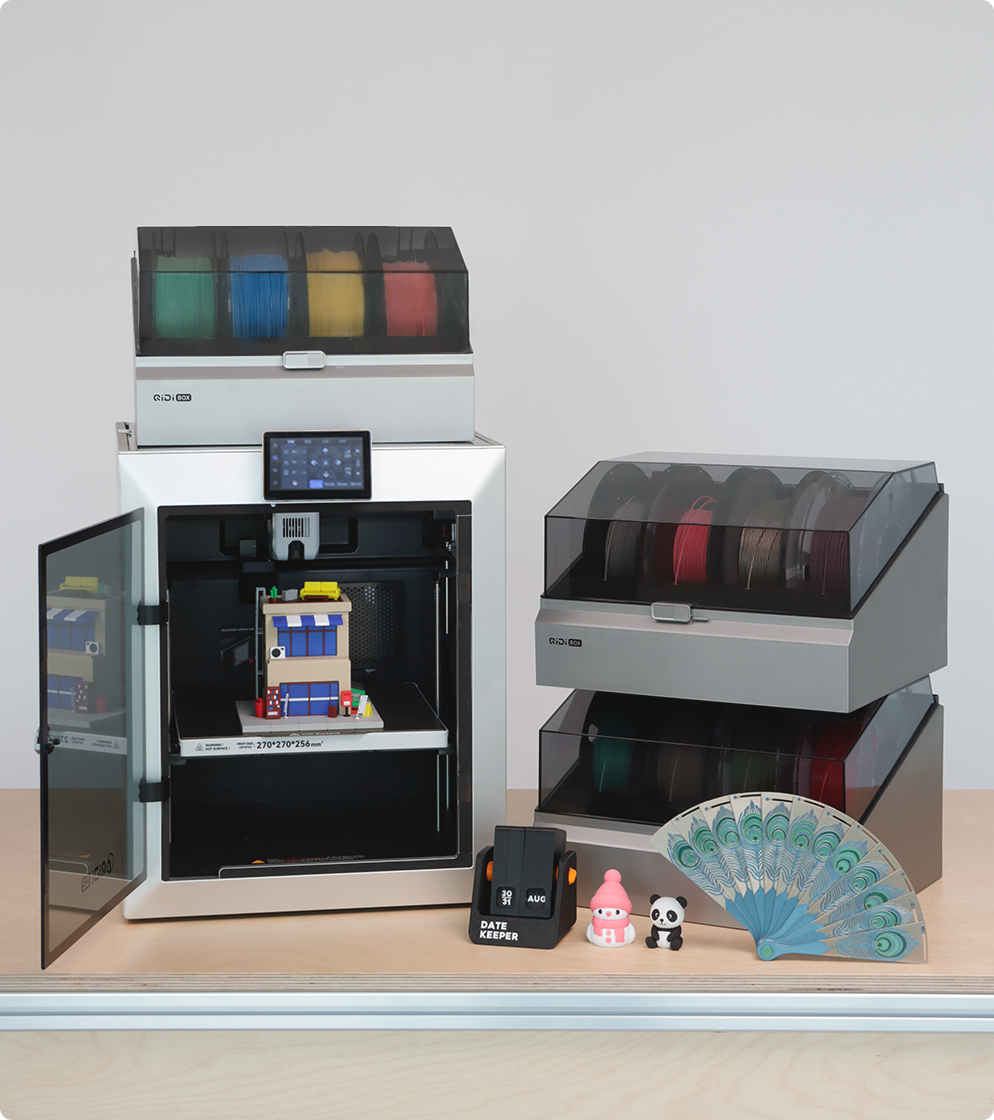

The QIDI Box is a four-slot filament management unit that adds multi-color printing, active drying, and automated failure recovery to a QIDI printer. One unit holds four spools; link up to four units and a single job can draw on 16 filaments. Its sealed bay dries filament at up to 65°C while the print is running.

QIDI Box Specifications at a Glance

Every number below comes from the official QIDI Box technical specification sheet.

Which QIDI Printers Work With the QIDI Box

Every printer in the current QIDI lineup lists QIDI Box multi-color support on its official spec sheet. The units are not interchangeable across machines without the right parts: the BOX Hub and BOX Hub Signal Cable differ by printer, so buy the hub kit that matches your machine.

If you are still deciding which machine to pair it with, the full range is listed on the 3D printers page, and the hubs, expansion kits, and spare shafts live under QIDI Box accessories.

QIDI Box: Multi-Color and Multi-Material Printing

The ability to use more than one color or material in a single print job is a major step up. This goes beyond just looks, allowing for complex and functional parts to be made without needing extra work after the print is finished.

Create Intricate Models Using Up to 16 Filaments

The QIDI Box opens up your creative possibilities, starting with color. A single unit holds four filament spools, but for ultimate freedom, you can link up to four units together using the QIDI Box Expansion Kit. This gives you 16 different filaments for a single print job, all handled automatically. You can create parts with amazing color detail, like anatomical models with color-coded organs or art pieces with beautiful, smooth gradients. But this setup is for more than just color—it also means you can load various material types to build composite parts. For the wiring and first-run walkthrough, follow the step-by-step QIDI Box connection and setup tutorial.

Improve Part Functionality with Mixed Materials

A key advantage of the system is combining different materials to build single parts with specific properties. This is useful for both engineering and design.

For example, an engineer building a drone needs a stiff frame and flexible landing gear. With the QIDI Box, they can load a rigid material like ABS-Carbon Fiber (ABS-CF) for the frame and a compatible flexible one like TPU 64D for the landing gear. The printer will automatically switch between them to create a single, solid part that has both properties.

For designers, the system makes it easier to print clean overhangs by using a different material for supports. You can print a model in PLA and use a water-soluble support such as dried PVA. Afterwards, soaking the part in water dissolves the PVA, leaving a smooth surface with no marks. This technique gives you the freedom to design and print more complex, hollow, or intricate models.

Which Filaments the QIDI Box Accepts

The compatibility list is not a suggestion — it is the difference between a clean 16-color print and a jam inside the feed path. This is the official split:

Two patterns explain that list. Very soft filaments buckle inside a long feed path instead of pushing forward, which is why TPU 95A is out while the harder TPU 64D is in. Very rigid or heavily filled filaments resist the tight bend radius of the tube. If you want a broader look at what each material is for, the complete filament types guide covers the whole family.

QIDI Box: Active Drying and Automated Failure Recovery

Good, dry filament is essential for a successful print. The QIDI Box helps by protecting your materials and preventing common failures, which makes the entire process more dependable.

Dry Filament As You Print for Better Quality

Many high-performance filaments like PA (Nylon) and PETG are hygroscopic, meaning they easily absorb moisture from the air. When damp filament is heated, the trapped water creates bubbles, stringing, and weak layer bonds that can ruin a print.

While you can pre-dry filament in an oven, the QIDI Box improves on this by actively drying the filament while it is printing. Its sealed bay runs at up to 65°C and supports simultaneous drying and printing, so a spool does not re-absorb moisture during the job. This is crucial for long prints, as filament left in the open can become compromised midway through. A built-in temperature and humidity sensor reports the current state on the printer screen and inside QIDI Studio, and the bay also takes desiccant packs for sealed storage between jobs.

One clarification worth making, because it is a common mix-up: 65°C is the QIDI Box drying temperature, not a chamber temperature. They are separate systems with separate jobs. If you also want to understand what the printer's own heated chamber does, see the guide to a temperature-controlled chamber in 3D printing, and for oven and dryer methods, read how to dry filament for 3D printing.

Run Prints Unattended with Automatic Safeguards

The system also uses automation to manage the print process and prevent problems. Its reliability is enhanced by a hardened steel dual-gear feeding mechanism driven by four 42-stepper motors, which provides the durability and stable feeding required for a wide range of filaments, including tough composites.

For example, when starting a long print, you can load two spools of the same material. If the first one runs out, the Filament Auto-Reload feature automatically switches to the second spool and continues the job without stopping. This means you can confidently run prints overnight or while you're away.

Likewise, the Tangle & Clog Detection feature acts as a sentry. If a tangle or clog stops the filament from feeding correctly, the system senses the problem, pauses the print, and alerts you. This prevents hours of "air printing" and turns a potential print-ending failure into a fixable pause, saving your model, time, and material.

QIDI Box: Simplified Setup and Built-in Safety

Beyond making prints more reliable, the QIDI Box is also designed to be easy to use and safe. Its smart features simplify the printing process and protect the equipment.

Skip Manual Setup with Automatic Filament Recognition

Setting up a new filament in slicing software usually requires you to manually enter the material type, brand, and correct temperature settings. Getting these settings wrong can lead to a bad print. The QIDI Box reads a tag on the spool using short-range NFC/RFID to automate this. With a QIDI tagged spool, you just load it into the box. The system instantly reads the tag and sends the correct material type, color, and print settings to the printer. This changes a manual chore into a simple action: load, recognize, and print, which reduces the chance of error for everyone.

Print with Peace of Mind Thanks to an Active Protection System

The system includes important safety features to reduce the chance of an accident. It uses a combination of a PTC resettable fuse and dual temperature sensors to monitor the internal heater. If a malfunction causes the heater to get too hot, the sensors detect the problem and the PTC fuse cuts power to it. This dual arrangement is designed to catch overheating early, though it does not remove the need for the usual sensible habits: keep the unit clear of clutter and use the supplied power cord only with the QIDI Box.

How to Get the Most Out of Your QIDI Box

To get the best results from your QIDI Box, here are a few practical tips for managing your filament, spools, and slicer settings.

Tip 1: Match the Filament to Your Project's Goal

The ability to use many different materials is a great benefit. To take full advantage of the multi-material capabilities discussed earlier, it's important to pick the right material for your project.

• For strong, functional parts that need to be durable, materials like ABS-CF or PETG-CF are good choices.
• For visual models where appearance is most important, or for general printing, PLA is easy to use and comes in many colors.
• For parts that need to be both stiff and flexible, you can combine a rigid material like PLA with a compatible flexible one like TPU 64D.
• For models with sharp overhangs or complex internal spaces, using a dried soluble support like PVA will give you the cleanest finish.

It's important to always check the official compatibility list before use, as some filaments like generic TPU, TPE, and damp PVA are not supported.

Tip 2: Avoid Cardboard Spools to Prevent Feeding Issues

For the automatic feeding system to work reliably, pay attention to the spool your filament is wound on. Do not use filament that comes on cardboard spools, as the cardboard surface can create dust and inconsistent friction. For best results, use plastic spools with a width between 50-72 mm and a diameter between 195-202 mm. If you prefer to use cardboard or other non-compatible spools, we strongly advise using a spool adapter.

Tip 3: Use a Wipe Tower for Sharp, Clean Colors

When you're doing multi-color prints, you want the colors to be sharp and separate. To achieve this, use the "Wipe Tower" feature in your slicer software. This creates a small, separate block on the print bed. Before switching colors, the printer moves to this tower to push out any remaining filament from the previous color. This step ensures your colors don't mix and appear vibrant and clean in the final object. If you still see one color ghosting into the next, the dedicated guide on how to avoid filament color bleeding walks through the purge-volume settings that fix it.

Tip 4: Budget for Purge Waste Before You Slice

Every color change discards a short length of filament into the wipe tower or the purge chute. That waste scales with the number of changes, not the number of colors, so a model that alternates colors every layer costs far more material than one with three clean color bands. Two habits keep it under control: group same-color regions so the slicer needs fewer swaps, and order the sequence so light colors follow light colors where the model allows it, since a dark-to-light change needs the largest purge.

Who Benefits Most from the QIDI Box

The combination of multi-material printing, active filament drying, and automated safeguards makes the QIDI Box a powerful tool. It's designed for users who want to move beyond the limitations of basic 3D printing, especially:

• Makers and Designers who want to produce models with high-quality visual finishes and complex geometries.
• Engineers who need to increase their prototyping efficiency and test the functionality of parts made from multiple materials.
• Any 3D printer user who is tired of dealing with print failures and is looking for more consistent and reliable results.

The system helps these users overcome the most common frustrations in desktop 3D printing, allowing them to spend more time creating and less time troubleshooting.

For the wider hardware context — which printers the Box was designed alongside and what QIDI has launched recently — see QIDI TECH's new printer debut at TCT Asia.

FAQs About the QIDI Box

Does the QIDI Box dry filament?

Yes. The QIDI Box supports active drying and can dry a spool while that spool is being printed, so the filament does not re-absorb moisture during a long job. Drying is rated for PLA, ABS, ASA, PA, PC, PET, PETG, PPS, and PLA Wood.

What is the QIDI Box max temperature?

65°C. That is the maximum drying temperature inside the box. It is not the same thing as a printer's chamber temperature, which is a separate heater inside the machine itself.

Can the QIDI Box dry filament while printing?

Yes — simultaneous drying and printing is an official capability, not a workaround. The box reports live temperature and humidity on the printer screen and in QIDI Studio so you can confirm the bay actually reached the target.

How many colors can the QIDI Box print?

Four per unit. Chaining four units through the expansion kit brings a single job up to 16 colors. The extra boxes and accessories are sold separately.

Does the QIDI Box work with every QIDI printer?

The current lineup — Q2C, Q2, Plus 5, and Max4 — all list QIDI Box multi-color support. The BOX Hub and BOX Hub Signal Cable are machine-specific, so match the hub kit to your printer rather than assuming one set fits all.

Why is my TPU not supported?

Softness is the reason. Generic TPU and TPU 95A compress and buckle inside the feed tube instead of advancing, so they are excluded. The harder TPU 64D is on the supported list.

Put Advanced Printing to Work!

The QIDI Box offers a practical solution to some of the most common challenges in FDM 3D printing. By combining multi-material capability, 65°C active drying, and smart automation, it makes the printing process significantly more reliable. Features like tag-based filament recognition and layered heater protection make it easier and safer to use. This system allows you to move beyond simple printing and take on more complex, colorful, and functional projects with confidence.
