How to Print PPS-CF Filament Perfectly?

To print PPS-CF successfully, dry the filament at 100–140 °C for 8–12 hours, print at a 310–350 °C nozzle and a 100–110 °C bed inside a heated chamber, use a hardened steel or tungsten carbide nozzle, and anneal finished parts at 120 °C for at least 6 hours with a slow in-oven cool-down. Everything below explains why each of those numbers matters and what happens when you deviate from them.

What Is PPS-CF Filament?

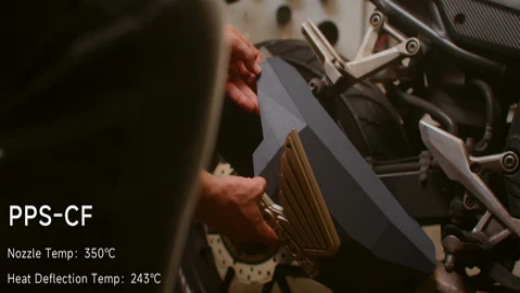

PPS-CF is a 3D printing filament made from polyphenylene sulfide reinforced with chopped carbon fiber. Polyphenylene sulfide is a semi-crystalline engineering thermoplastic built from aromatic rings linked by sulfide bridges, and it is one of the few polymers that will not dissolve in any common solvent below roughly 200 °C. Adding short carbon fibers to that backbone raises stiffness and cuts shrinkage, which is what makes the composite printable on a desktop machine at all.

QIDI PPS-CF combines those two ingredients into a filament aimed at near-industrial results: solvent resistance, corrosion resistance, heat resistance, flame retardancy, ultra-low moisture absorption, and high stiffness. It is not a general-purpose material. It is what you reach for when a part has to survive chemicals, sustained heat, or both, and when PETG-CF or PA12-CF have already failed the requirement.

One distinction is worth making early. Carbon fiber here means short chopped fiber blended into the polymer, not continuous carbon fiber reinforcement, which requires dedicated fiber-placement hardware. Chopped fiber improves stiffness and dimensional stability; it does not turn the part into a laminate.

QIDI PPS-CF Technical Data at a Glance

QIDI publishes a full technical data sheet for PPS-CF, and the numbers below are taken directly from it. Use them to decide whether the material fits the job before you spend a spool learning it.

Heat deflection temperature is the temperature at which a standard specimen deflects a defined amount under a specified load. It is the single most useful number when comparing high-temperature filaments, because it describes behaviour under stress rather than the temperature at which the plastic simply melts.

How Do You Dry QIDI PPS-CF Filament?

Dry QIDI PPS-CF at 100–140 °C for 8–12 hours before printing, then keep it in an active dryer for the whole print. The 0.05% water absorption figure describes equilibrium uptake, not immunity — a spool left open in a humid workshop still picks up enough surface moisture to cause stringing and weak layer bonding at 340 °C.

Drying procedure:

• Check the spool surface is clean and free of dust or foreign objects.
• Place the spool in a dedicated filament dryer or a blast drying oven rated for the temperature.
• Set 120 °C (248 °F) and run for 8 hours. This sits mid-range in QIDI's published 100–140 °C / 8–12 hour window and is the setting that works for most spools; extend the time if the spool has been open for weeks or stored in high humidity.
• Move the filament straight into a sealed, actively dried feed path — do not let it sit on the bench cooling in open air.

During printing, keep the spool in a filament drying box or a managed feed system such as the QIDI Box. Continuous drying is what prevents moisture re-absorption over a print that may run for many hours. If you want the general principles behind drying temperatures and times, mastering filament drying techniques covers the method across material families, and how to store 3D printer filament properly covers what happens between prints.

What Print Settings Does PPS-CF Need?

PPS-CF prints at a 310–350 °C nozzle, a 100–110 °C bed, 30–100 mm/s, and 0–30% part cooling, inside a heated chamber. The numbers below assume a machine such as the QIDI Plus 4, which pairs a 370 °C hotend with an actively heated 65 °C chamber, or the larger QIDI Max4 for bigger parts.

Chamber temperature is not a comfort feature here. A simulation study of ambient temperature in extrusion printing found that raising the build environment from 50 °C to 120 °C measurably reduced residual stress in printed parts by reducing the thermal gradient during cooling. That is exactly the mechanism that makes tall PPS-CF parts crack at the layer lines when they cool too fast. If you want the longer version of that argument, see why a temperature-controlled chamber matters.

What Hardware Does PPS-CF Require?

PPS-CF requires an abrasion-resistant nozzle — hardened steel, bimetal, or tungsten carbide — because the carbon fiber will erode a brass nozzle within a few spools. This is not optional maintenance advice; a worn nozzle bore changes extrusion width, and the first symptom is usually under-extrusion that no flow calibration will fix.

• Nozzle: a bimetal nozzle handles the 350 °C requirement and resists wear; a tungsten carbide bimetal nozzle lasts substantially longer if PPS-CF is a regular part of your workflow.
• Hotend: must be rated to at least 350 °C with no PTFE in the melt zone. QIDI's current lineup runs 370 °C hotends as standard.
• Chamber: actively heated, not merely enclosed. Passive enclosures stabilise ABS well but do not reach the 60–65 °C that keeps PPS-CF layers bonded.
• Build plate: PEI or smooth PEI. Textured surfaces work, but PPS-CF grips hard and thin parts can be difficult to release.
• Feed path: direct drive with a short, gentle filament route. Fiber-filled filament is brittle on the spool and snaps in tight bends.

High-temperature composites also change the maintenance schedule for the extruder itself. Extruder maintenance for high-temperature PPS-CF printing walks through what to inspect and how often, and the signs that a nozzle needs replacing covers how to spot wear before it ruins a part.

How Do You Anneal PPS-CF Printed Parts?

Anneal PPS-CF by preheating an oven to 120 °C, holding the parts for at least 6 hours, then switching the oven off and letting them cool to room temperature inside it. Annealing is a heat treatment in which a material is held above a transition temperature and then cooled under control, so that internal stress relaxes and the crystalline structure reorganises.

For a semi-crystalline polymer like PPS, this is not a marginal gain. In a published study of heat treatment on 3D printed PPS, crystallinity rose from 19.13% in force-cooled samples to 64.08% after treatment at 240 °C, and tensile strength rose from 27.7 MPa to 57.3 MPa with elastic modulus climbing from 1.45 GPa to 3.21 GPa. Those figures come from neat PPS specimens under laboratory conditions rather than from QIDI PPS-CF parts, so treat them as evidence of the mechanism, not as a promise about your bracket. The direction of the effect, however, is consistent and well documented.

Annealing procedure for QIDI PPS-CF parts

• Place the printed parts on a tray with even spacing so heat reaches every surface. Crowding produces hot spots and uneven shrinkage.
• Preheat a blast drying oven or industrial oven to 120 °C (248 °F). Wait until it has actually reached temperature before loading.
• Hold the parts for at least 6 hours. Larger or thicker models benefit from longer holds.
• Switch the oven off and leave the door closed. Let the parts cool to room temperature inside. Rapid cooling reintroduces exactly the stress the treatment was meant to remove.
• Remove the tray only once everything is at room temperature.

Complex models with thin walls and long unsupported spans are the ones that deform. If dimensional accuracy matters more than the last few percent of stiffness, either skip annealing or run a test part first.

What Are the Key Advantages of PPS-CF?

PPS-CF's four defining advantages are a 242.7 °C heat deflection temperature, UL-94 V-0 flame retardancy, 0.05% water absorption, and a 7160 MPa bending modulus. Each maps to a specific class of application.

Heat and flame resistance

A heat deflection temperature of 242.7 °C and a Vicat softening point of 268 °C place PPS-CF well above nylon-based composites for sustained-heat service. The UL-94 V-0 rating means a test specimen self-extinguishes within the standard's time limits — useful where fire-safety requirements apply, though the rating describes a laboratory test and should be verified against the specific certification your application demands.

Solvent and chemical resistance

Below roughly 200 °C, PPS is not dissolved by common solvents, and it resists acids, bases, and salts under normal conditions. That chemical inertness is why the polymer shows up in pump housings, fluid handling, and chemical process equipment.

Ultra-low water absorption

At 0.05%, PPS-CF absorbs roughly one-fiftieth of what PA12-CF does (2.46%). For parts that live in humid air, in water, or in wash-down environments, that is the difference between a component that holds tolerance and one that swells. Pump impellers, marine fittings, and diving hardware are the classic cases.

Stiffness

The 7160 MPa bending modulus comes from combining the inherent rigidity of PPS with chopped carbon fiber reinforcement. Parts hold their geometry under load rather than flexing, which is what jigs, fixtures, and structural brackets need.

How Does PPS-CF Compare With Other QIDI Engineering Filaments?

PPS-CF has the highest heat deflection temperature and the lowest moisture uptake of QIDI's engineering composites, but UltraPA-CF25 is stronger in tension and PET-CF is far easier to print. The table below uses published QIDI technical data for each filament so the comparison is like for like.

Read that table as a decision tool. If the requirement is sustained heat above 200 °C, chemical exposure, or dimensional stability in water, PPS-CF is the answer and nothing else on the list comes close. If the requirement is raw tensile strength in a warm-but-not-hot environment, UltraPA-CF25 does more for less trouble — and the UltraPA-CF25 printing guide covers its own drying and annealing routine. For a broader survey of the composite landscape, selecting industrial 3D printing composites weighs carbon fiber against glass fiber and neat engineering polymers.

When Should You Not Use PPS-CF?

PPS-CF is the wrong choice for cosmetic parts, for machines without an actively heated chamber, and for anyone who cannot dry filament to a controlled schedule. Matching the material to the job saves more spools than any tuning session.

Troubleshooting PPS-CF Prints

Most PPS-CF print failures trace back to one of four causes: wet filament, a cold chamber, a worn nozzle, or cooling that is too aggressive. Work through them in that order.

PPS-CF Frequently Asked Questions

What temperature do you print PPS-CF at?

Print PPS-CF at a 310–350 °C nozzle temperature with a 100–110 °C bed. Most parts do best in the 320–350 °C band, because higher melt temperature improves layer bonding in a semi-crystalline polymer with a 284 °C melting point.

Do you need a hardened nozzle for PPS-CF?

Yes. The chopped carbon fiber in PPS-CF is abrasive and will wear a brass nozzle quickly. Use hardened steel, a bimetal nozzle, or a tungsten carbide bimetal nozzle, all of which also need to be rated for 350 °C operation.

Can you print PPS-CF without a heated chamber?

Not reliably. Small, low parts may survive, but anything tall or with a large footprint will warp or delaminate without an actively heated chamber at 60–65 °C. A passive enclosure is not a substitute, because it cannot hold the chamber temperature that keeps the thermal gradient low.

How long do you dry PPS-CF filament?

Dry PPS-CF for 8–12 hours at 100–140 °C. A practical default is 120 °C for 8 hours for a freshly opened spool, extending toward 12 hours for filament that has been exposed to humid air.

Is annealing PPS-CF necessary?

Annealing is optional but strongly beneficial for functional parts. Holding parts at 120 °C for at least 6 hours relieves residual stress and increases crystallinity, which raises stiffness and dimensional stability. Skip it when tight dimensional tolerances matter more than mechanical performance, since annealing causes slight shrinkage.

Is PPS-CF stronger than PA12-CF?

It depends on which property you mean. PPS-CF has a much higher bending modulus (7160 MPa versus 3915.93 MPa) and a far higher heat deflection temperature (242.7 °C versus 78.4 °C), but PA12-CF has higher tensile strength (76.95 MPa versus 55–65 MPa). Choose PPS-CF for stiffness, heat, and chemical exposure; choose PA12-CF for tougher parts in ordinary conditions.

What does PPS-CF cost you in hardware?

At minimum, a 350 °C-capable hotend, an abrasion-resistant nozzle, an actively heated chamber, and a dryer that reaches 120 °C. Printers built for engineering materials — such as the Plus 4 with its 65 °C heated chamber and 370 °C hotend — cover all four without modification.

Getting Consistent Results From PPS-CF

PPS-CF rewards discipline more than tuning skill. Dry the filament to schedule, keep it dry throughout the print, hold the chamber at temperature, use a nozzle that will not wear, and let annealed parts cool slowly. Get those five things right and the material delivers a 242.7 °C heat deflection temperature, UL-94 V-0 flame retardancy, and near-zero moisture uptake on a desktop machine.

PPS-CF is one option in a wider family of engineering composites. To see where it sits against the alternatives, read how to choose industrial 3D printing composite materials, or step back to the fundamentals in the carbon fiber filament guide. For the more common case of a bracket that only needs to survive appliance-level heat, PC vs ASA for high-heat appliance mounts is the cheaper starting point. Browse the full range of high-performance filaments when you are ready to pick a material.
