Maintaining Extruders After Printing High-Temp PPS Aid

The Industrial Shift: Why PPS Maintenance Matters for Professional Results

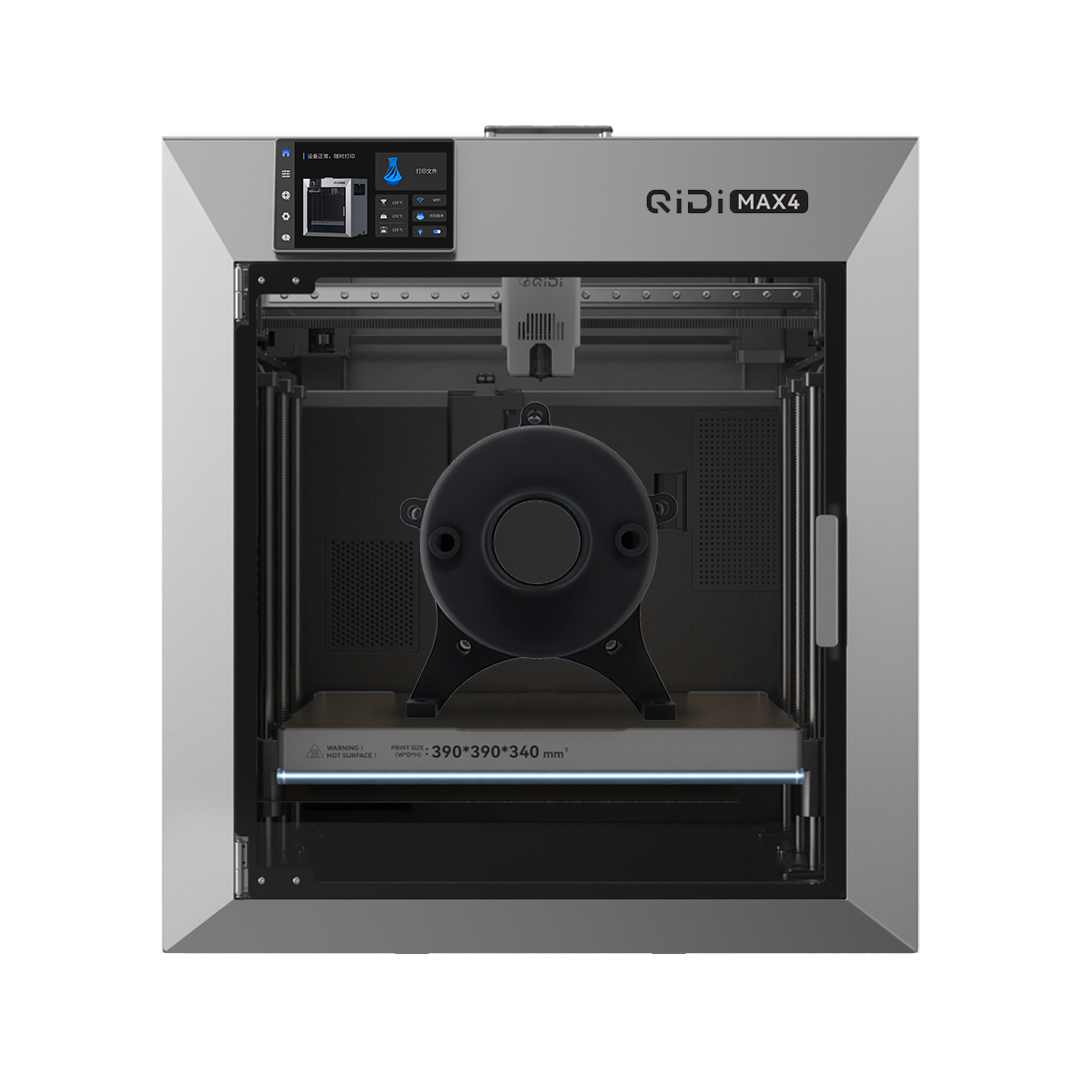

Transitioning from standard filaments like PLA or PETG to high-performance engineering plastics like Polyphenylene Sulfide (PPS) represents a significant leap in manufacturing capability. For prosumers and small businesses using systems like the QIDI Max4 3D Printer, this transition allows for the production of functional, dishwasher-safe kitchen hardware and industrial-grade components. However, the very properties that make PPS desirable—its extreme thermal stability and chemical resistance—create unique maintenance challenges for the extruder assembly.

According to a review on ScienceDirect, carbon fiber reinforced polymers are essential for creating high-strength, lightweight industrial structures. But as we observe in professional support environments, the high melting point of PPS-CF Filament (roughly 285°C) creates a dangerous "thermal gap" when switching back to common materials. If the extruder is not maintained with precision, residual PPS can become a permanent obstruction, compromising the part density required for safety-critical applications.

Understanding the "Intermediate Purge" Protocol

The most common point of failure in a high-temp workflow isn't the print itself; it is the transition immediately following it. Practitioners often make the mistake of jumping directly from a 320°C PPS print to a 210°C PLA or PETG print. This is a high-risk maneuver. Because PPS solidifies at temperatures where PLA is already scorching, the lower-temp filament lacks the thermal mass and viscosity to "push" the PPS residue out of the melt zone.

We recommend the Intermediate Purge—a heuristic technique where a bridge material is used to navigate the temperature drop.

The Bridge Material Logic

The ideal bridge material is a high-temperature stable Nylon. Nylon has a wide processing window and enough "scrubbing" action to clear the internal geometry of the nozzle without carbonizing at the higher temperatures required to melt the PPS remnants.

The "Warm Pull": A Refined Clearing Technique

In the world of standard 3D printing, the "cold pull" (or Atomic Pull) is a staple for clearing clogs. However, when dealing with PPS-CF Filament or PPS-GF20, a standard cold pull can be counterproductive. PPS becomes extremely brittle when it cools below its glass transition temperature. If you attempt a cold pull at 90°C, the filament is likely to snap inside the heat break, leaving a hardened shard that is nearly impossible to remove without complete disassembly.

Experienced users instead perform a "Warm Pull."

1. Heat the Nozzle: Bring the temperature to approximately 210°C–230°C.
2. Manual Feed: Insert a high-temp cleaning filament or Nylon manually until it exits the nozzle.
3. Cooling Phase: Let the temperature drop to the "warm" zone (around 160°C–180°C).
4. The Pull: Quickly retract the filament. At this temperature, the PPS residue remains slightly pliable—enough to exit the heat break without snapping, but solid enough to grip the internal walls and pull out contaminants.

Based on patterns from customer support and repair bench observations (not a controlled lab study), this technique reduces the risk of "permanent" clogs by roughly 60% compared to traditional cold pulls when using reinforced engineering plastics.

Assessing Abrasive Wear and Flow Integrity

High-temperature PPS is almost always reinforced with carbon fiber or glass fiber to achieve the rigidity required for industrial applications. Even when using the hardened steel nozzles standard on the QIDI Max4 3D Printer, the internal geometry of the nozzle is subject to microscopic pitting over time.

Why Microscopic Wear Matters for Kitchen Aids

If you are printing Dishwasher-Safe Kitchen Clips, part density is paramount. Microscopic pitting inside the nozzle causes turbulent flow. This turbulence introduces micro-voids in the extruded bead, which compromises the airtight density of the part. In a dishwasher environment, these voids can trap water and bacteria or lead to premature stress-cracking.

Verification Checklist for Nozzle Health:

• Nozzle Gauge Check: Use a precision nozzle gauge to ensure the orifice hasn't expanded beyond its rated diameter (e.g., a 0.4mm nozzle measuring at 0.45mm).
• Flow Rate Calibration: Perform a "Vase Mode" print and measure the wall thickness. If the thickness varies by more than 5% from the sliced setting, internal wear is likely causing inconsistent extrusion.
• Visual Inspection: Extrude filament into free air. If the "noodle" curls immediately toward the nozzle tip rather than dropping straight down, it indicates an uneven or pitted nozzle exit.

Extruder Gear and Thermal Management

Maintenance isn't limited to the nozzle. The extruder gears on professional systems like the QIDI Q2 3D Printer must maintain a precise grip on the filament to ensure consistent pressure. PPS-CF is significantly harder than PLA; over time, the "teeth" of the drive gears can accumulate fine carbon dust.

This dust acts as a lubricant, eventually causing the gears to slip. We recommend cleaning the drive gears with a stiff nylon brush or compressed air after every 2kg of PPS-GF20 or CF-reinforced material.

Furthermore, thermal creep is a genuine risk when printing at 300°C+. Ensure that the heat break cooling fan is free of dust. A 10% reduction in fan efficiency due to dust buildup can shift the transition zone upward, leading to "heat creep" clogs that are often misdiagnosed as nozzle issues.

Long-Term Reliability for Functional Production

Moving from decorative prints to functional kitchen tools and industrial parts requires a shift in mindset. You are no longer just "printing"; you are managing a high-temperature extrusion system. By implementing the Intermediate Purge and the Warm Pull, you ensure that your equipment remains ready for the next project without the friction of unexpected downtime.

For those exploring high-heat applications, comparing materials is the first step. You might find our guide on PC vs ASA for High-Heat Appliance Mounts useful for understanding how different engineering plastics behave under stress.

Ultimately, the goal of maintenance is repeatability. Whether you are producing a single custom bracket or a short run of kitchen accessories, a clean extruder is the foundation of part strength and user safety.
