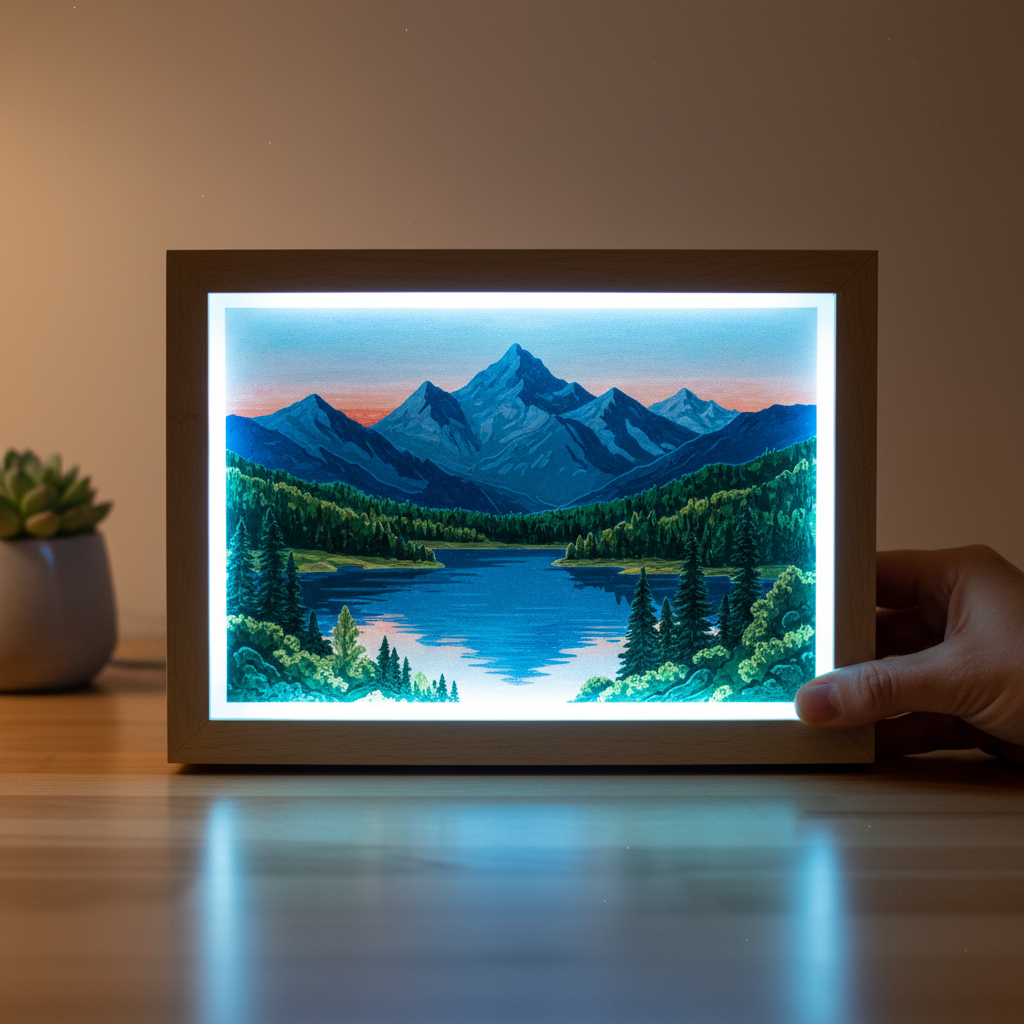

The Mechanics of Multi-Material Color Lithophane Printing

A color lithophane works by stacking translucent cyan, magenta and yellow filament over a white base so that backlight is filtered subtractively as it passes through. Photographic quality depends on three things: a 0.08 mm layer height, filaments with known transmission distance, and a daylight-balanced light source at 5000 K or above.

Moving from traditional monochrome sepia lithophanes to full-color output is a genuine step up in both material science and mechanical precision. Unlike a paper printer that sprays liquid ink, a multi-material FDM system has to layer solid polymers with microscopic accuracy and let light do the mixing. This guide covers the engineering behind that process and how to build a workflow that repeats.

What a Lithophane Is, and Why Color Changes the Problem

A lithophane is an image rendered as a thin translucent panel of varying thickness, visible only when backlit — thick regions transmit less light and read as dark, thin regions read as bright. The technique predates 3D printing by roughly two centuries; porcelain lithophanes were produced from the 1820s onward.

A monochrome lithophane encodes an image entirely in geometry. A color lithophane adds a second encoding: pigment. It relies on subtractive color mixing, the same principle as the CMYK process in traditional printing. In 3D printing there is no separate Key (black) layer in the conventional sense; instead the workflow uses the varying thickness of a white canvas together with the translucency of cyan, magenta and yellow filaments.

That combination is what makes color lithophanes harder than they look. Thickness now controls both brightness and saturation, so an error in Z-axis positioning changes the perceived color of a region, not just its brightness. If you have not printed a monochrome lithophane before, start there — the technical guide to 3D printed lithophanes covers the geometry-only version, and the settings carry over.

The Physics of Light: Understanding Transmission Distance

Transmission Distance (TD) is a filament property describing how deep light penetrates the material before it is substantially absorbed or scattered. A high-TD filament is more translucent; a low-TD filament blocks light in a thinner section. Lithophane slicing tools ask for a TD value per filament because the software needs it to convert image brightness into layer thickness.

The underlying relationship is exponential rather than linear: transmitted intensity falls off with path length according to the Beer–Lambert law. This is why doubling a wall's thickness does not halve its brightness — it darkens it far more than that. Two practical consequences follow:

1. The white canvas (low TD): The base layer needs high opacity. If the white is too translucent, the backlight washes out the color layers above it and the image loses contrast everywhere at once.
2. The color layers (consistent TD): Cyan, magenta and yellow must have predictable and similar translucency. If your yellow has meaningfully higher TD than your cyan, the greens and oranges in the final print will shift, because the mixing ratios the slicer assumed no longer hold.

The practical rule: buy all four filaments from one brand and one product family, and record the TD values you calibrate. Mixing brands is the most common cause of a print where the settings were right but the colours came out wrong.

For material choice, PLA Basic is generally preferred for its flowability and predictable optical behaviour. For a non-reflective finish that reads more like matte photographic paper and reduces glare when viewed off-axis, PLA Matte is worth testing — though matte fillers lower TD, so expect to recalibrate. Broader material comparisons are in the guide to printing with transparent filaments.

Precision Engineering: Why Hardware Stability Is Non-Negotiable

A color lithophane is a stack of hundreds of micro-layers. At a 0.08 mm layer height, even a microscopic deviation in the Z-axis produces ringing or visible stepping that destroys the photographic illusion.

Z-Axis Stability

Professional output requires a rigid motion system. The QIDI Max4 uses a 2 mm lead Z-axis screw with an anti-backlash nut, which minimises the Z-wobble that shows up as periodic banding on entry-level machines. In a lithophane, a 0.02 mm deviation changes how much light passes through that point — and therefore the perceived colour of that region, not merely its brightness. That is the difference between lithophanes and ordinary prints: mechanical error becomes chromatic error.

Thermal Management and Enclosures

Temperature fluctuation over a long print causes material to expand and contract slightly. A review of 3D printing materials, advances and limitations identifies thermal stability as a primary constraint on dimensional accuracy. An enclosed printer such as the QIDI Q2, with second-generation independent chamber heating to 65 °C, keeps ambient conditions constant so a large flat panel stays flat.

One important qualifier: for PLA specifically, QIDI recommends keeping chamber temperature at or below roughly 45 °C. A hot chamber suits ABS and ASA but reduces part cooling efficiency with PLA and increases heat creep risk. On a lithophane, where thin sections need to solidify quickly, running the chamber too warm causes exactly the surface artefacts you are trying to avoid. The trade-offs are discussed further in the article on temperature-controlled chambers.

Slicing Strategies for Photographic Detail

Default slicer settings do not produce photographic lithophanes. The following rules of thumb come from common practice and community consensus.

The 0.08 mm Standard

Many hobbyists print at 0.12 mm or 0.16 mm for speed. Photographic quality requires 0.08 mm or 0.1 mm.

• Why: At 0.12 mm and above, the steps between colour gradients become individually visible. At 0.08 mm the layers are thin enough that the eye reads them as a continuous blend.
• How to verify: Print a 20 × 20 mm test gradient. If you can see distinct bands of colour, your layer height is too high for that image.

Purge Volume and Ghosting

Insufficient purging during filament changes is the most common single mistake in colour lithophanes. Transitioning from a saturated magenta to a bright white requires a substantial flush of the melt zone.

• Starting point: Set purge volume at least 20% above the slicer default when transitioning to white, and treat that as a floor rather than a target. Under-purging produces ghosting, where the previous colour muddies the highlights of the image.
• Why it is worse on lithophanes: Contamination that would be barely visible in reflection is obvious in transmission, because backlighting amplifies exactly the tonal differences you are trying to control.

The full method for calibrating flush values per filament pair is covered in the guide to stopping colour bleed, and the hardware setup for automated filament changes is in the multi-color printing tutorial.

Methodology Note: Modeling Photographic Quality

To show the impact of layer height on colour accuracy, the table below models a comparison between 0.08 mm and 0.16 mm on the same image.

Method & Assumptions: Print times are order-of-magnitude estimates for a panel roughly 150 mm tall printed vertically, not measured benchmarks. Actual duration depends on image dimensions, number of filament changes, and purge volume. Treat the table as a comparison of trade-offs, not as a specification.

Orientation and Lighting Strategy

Orientation — vertical versus horizontal — changes the final result substantially.

Vertical Printing

Most experienced users prefer vertical orientation. It cools thin walls more evenly and keeps layer lines perpendicular to the light path, so the layers themselves do not project stripes onto the image. It does demand the mechanical stability described above: a tall, thin panel will sway during fast direction changes, and that sway shows as blurred detail.

Horizontal Printing

Horizontal printing is easier and faster but usually produces top-surface artefacts. The nozzle path leaves visible lines across the face of the lithophane, which reads as texture rather than photograph. It is a reasonable choice for large graphic images and a poor one for portraits.

The Role of Backlighting

The light source is not an accessory to a colour lithophane; it is part of the optical system. Two properties matter.

The color rendering index is the specification most people skip, and it is the one that most often explains a lithophane that looks flat despite a technically correct print. If the piece is being built into a lamp or frame, the mounting and light-leak considerations in fixing light leaks in 3D printed lamps apply to the enclosure around it.

Frequently Asked Questions

How many filaments do I need for a colour lithophane?

Four is the standard set: cyan, magenta, yellow and white. Some workflows add black for deeper shadows, bringing it to five. A multi-filament system makes this practical — the QIDI Box holds four spools per unit and chains up to four units for 16 filaments, with a sealed 65 °C chamber that keeps them dry through an 18-hour print. Dryness matters more than usual here, because steam bubbles in a thin translucent wall scatter light and show up as haze.

Why does my lithophane look washed out even though the print is clean?

Usually the white base layer is too translucent, or the backlight is too bright and too close. The white canvas sets the black point of the image; if light leaks through it, every colour above loses contrast simultaneously. Increase base thickness or switch to a lower-TD white filament, and diffuse the light source before assuming the colour layers are at fault.

Is 0.08 mm always worth the extra print time?

For portraits and images with smooth tonal gradients, yes — banding at 0.12 mm and above is visible at normal viewing distance and there is no post-processing fix. For graphic images with hard edges and flat colour areas, 0.12 mm is often indistinguishable and roughly halves the print time. Judge by the image, not by principle.

Can I print a colour lithophane on a single-extruder printer without a multi-material system?

Not a true CMY one. What you can print is a monochrome lithophane, where the image is encoded entirely in thickness, and those look excellent in a single white or light filament. The colour version requires automated filament switching, because a full-colour image needs hundreds of changes at precise layers — manual swaps are not realistic.

What causes horizontal banding across the whole image?

Periodic banding at a regular interval points at the Z-axis: lead screw wobble, a binding coupler, or an inconsistent Z step. Irregular banding usually points at extrusion — a partially clogged nozzle or damp filament. Print a tall, thin single-colour test wall; if the banding appears there too, it is mechanical and no slicer setting will hide it on a lithophane.

Summary of Key Takeaways

• Material choice: Filaments with known, consistent transmission distance from a single family. PLA Basic offers the flow predictability needed for repeatable colour mixing; the wider filament range lists the options.
• Mechanical precision: A stable Z-axis. The QIDI Max4, with a 2 mm lead screw and anti-backlash nut across a 390×390×340 mm envelope, provides the rigidity that prevents banding on tall panels.
• Slicing discipline: 0.08 mm layer height for photographic images, purge volumes at least 20% above default when transitioning to white.
• Lighting accuracy: Daylight-balanced LEDs at 5000 K or higher, CRI 90+, diffused rather than point-source.
