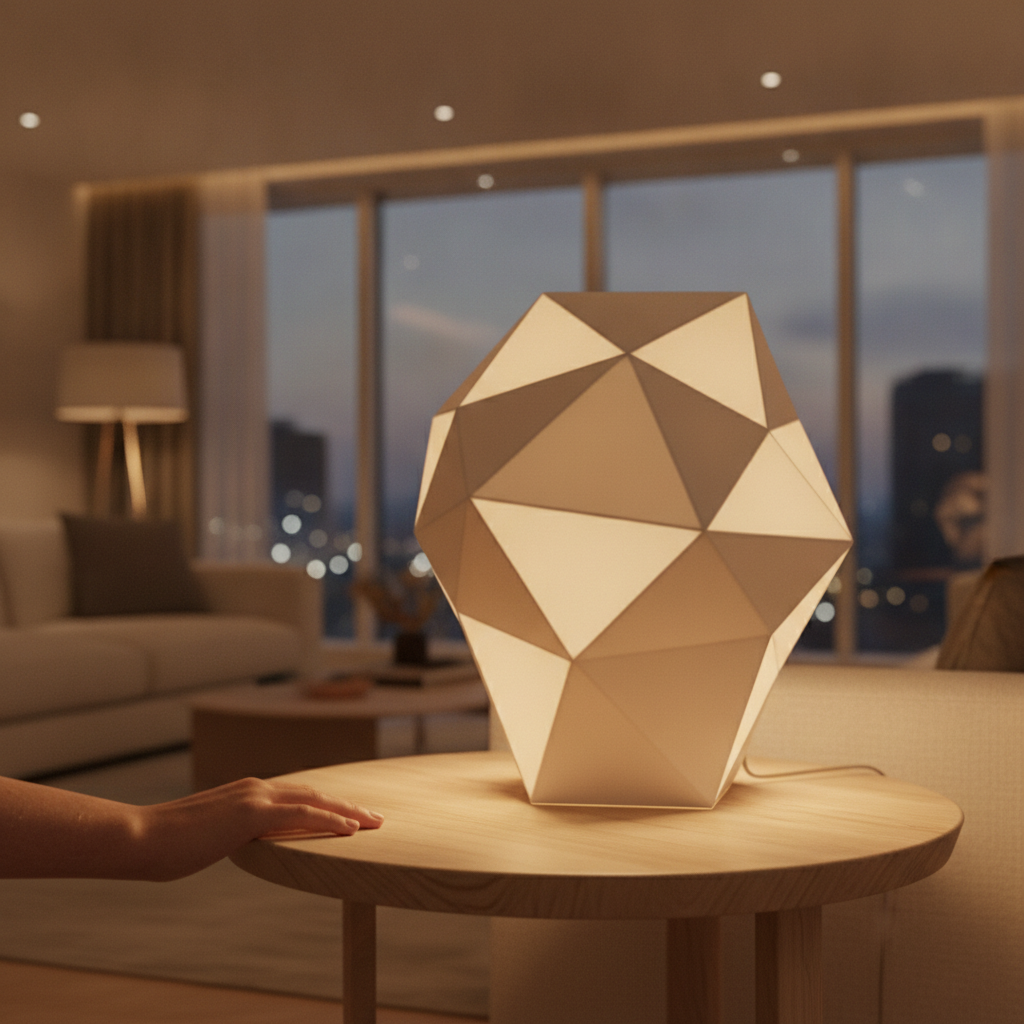

Fixing Light Leaks and Gaps in 3D Printed Architectural Lamps

The Precision Gap: Why Architectural Lighting is the Ultimate 3D Printing Test

Creating a functional architectural lamp is often the point where a serious maker transitions into a professional designer. Unlike a static sculpture, a lamp is an active light source that subjects your print to two harsh critics: thermal stress and backlighting. When a bulb is energized, the light acts as a diagnostic tool, revealing every microscopic void, inconsistent layer line, and "pinhole" leak that would otherwise remain invisible.

For those moving beyond entry-level tinkering toward professional-grade functional art, the goal is a "light-tight" finish. Achieving this requires moving past the idea that "more walls equals better sealing." True light-tightness is a product of path planning, thermal management, and material science. Whether you are using PLA Matte Basic for its elegant diffusion or ABS Rapido Filament for high-temperature durability, the following strategies will help you eliminate the "zipper" leaks and corner gaps that plague architectural models.

1. The Geometry of Light: Wall Thickness and Extrusion Width

The most frequent cause of "streaky" light leaks isn't a lack of material, but a mismatch between your digital design and your slicer’s pathing. In FDM printing, the nozzle has a specific extrusion width—typically slightly wider than the nozzle diameter (e.g., a 0.4mm nozzle often extrudes at 0.42mm to 0.45mm to ensure overlap).

A common mistake is designing a wall that is an odd thickness, such as 1.0mm. If your extrusion width is 0.45mm, the slicer will print two perimeters (0.90mm total) and then attempt to "gap fill" the remaining 0.10mm with a jittery, zig-zag motion. This gap fill is rarely consistent and often leaves microscopic air pockets. When lit from behind, these pockets appear as dark or bright streaks.

2. Eliminating the "Zipper": Advanced Seam Management

The "Z-seam" is the point where the nozzle starts and ends each layer. In architectural lighting, this often manifests as a vertical line of light leaks, commonly called the "zipper."

Scarf Seams: The New Industry Standard

For professional-grade lamps, "Scarf Seams" are becoming the preferred method. Instead of stopping the extrusion abruptly, the nozzle "tapers" the end of the line while simultaneously starting the next layer’s taper. This creates a diagonal, overlapping joint rather than a butt joint.

The "Random + Overflow" Technique

If your slicer does not yet support scarf seams, or if you are printing a perfectly cylindrical lamp, a "Random" seam placement combined with a slight flow rate increase is a highly effective alternative.

• The Tweak: Increase the flow rate for the outer wall only to 102-105%.
• The Result: The slight excess of material acts as a "plug" for the pinhole that naturally forms at the seam.

While this might slightly affect dimensional accuracy (usually by less than 0.05mm), the trade-off is a light-tight exterior. This is especially useful when working with PETG Basic, which is prone to "oozing" at the seam. Proper calibration ensures that the high success rate of PETG is matched by a professional aesthetic.

3. Structural Joints and Light-Baffles

Architectural lamps are often too large to print in a single piece. The interface where two parts meet is the most vulnerable point for light leaks. Simple butt joints (two flat surfaces touching) almost always leak light because 3D printed surfaces are never perfectly flat due to the layer-by-layer nature of FDM.

The 45-Degree Step Joint

Instead of a flat edge, design a 45-degree "step joint" or "lap joint." By creating an overlapping "L" shape at the connection point, you force the light to travel through a 90-degree turn to escape. Light does not turn corners easily; the physical barrier of the overlap effectively blocks the leak even if the fit isn't perfectly airtight.

4. Thermal Stability: Preventing the "Base Leak"

The most catastrophic light leaks in architectural models usually occur at the very bottom. If the corners of your print lift (warp) even by half a millimeter, a massive "halo" of light will spill out from the base. This is a common issue when using high-performance materials like ABS Rapido Filament.

The Active Chamber Solution

To prevent corner lifting, you must control the cooling rate of the plastic. For a professional finish, an enclosed printer with active chamber heating is no longer optional; it is a requirement. Maintaining a chamber temperature of 55-60°C ensures that the entire model stays at a uniform temperature, preventing the internal stresses that cause warping.

The QIDI Q2 3D Printer is specifically designed for this challenge, featuring a second-generation 65°C active chamber heating system. This environment allows ABS Rapido Filament to adhere perfectly to the build plate, ensuring that the base of your lamp remains perfectly flat and light-tight.

5. Material Selection for Functional Art

Choosing the right material is about balancing aesthetics with the physical realities of lighting.

• For Diffusion: PLA Matte Basic is the gold standard for lampshades. Its specialized formula reduces color saturation and hides layer lines, creating a premium, ceramic-like texture that glows softly.
• For Durability and Outdoors: If you are designing a lamp for a patio or a sunroom, PETG Basic offers the UV resistance and water resistance needed to survive the elements. You can learn more about managing these materials in our guide on improving UV resistance for 3D printed connectors.
• For Heat Resistance: For housings that contain electronics or are near higher-wattage bulbs, ABS Rapido Filament provides the necessary thermal deflection.

According to a PMC Review on 3D printing materials, the evolution of these filaments has significantly reduced the limitations of FDM for functional parts, provided the user understands the specific thermal properties of each polymer.

Checklist for a Light-Tight Finish

To ensure your next architectural project meets professional standards, follow this final checklist:

1. Calibrate Extrusion Width: Ensure your slicer's "External Perimeter" width matches a multiple of your wall thickness.
2. Dry Your Filament: Materials like PETG Basic are hygroscopic. Moisture causes steam bubbles, which appear as "sparkle" leaks when lit. Dry for 6-8 hours at 60-65°C before printing.
3. Use Scarf Seams: Or set "Seam Gap" to 0% and increase outer wall flow to 103%.
4. Heat the Chamber: If using ABS or ASA, set your QIDI Q2 3D Printer chamber to at least 55°C to prevent base-lifting.
5. Design for Overlap: Never use butt joints; always use lap or step joints for multi-part assemblies.

By focusing on path planning and thermal stability, you move away from the "trial and error" of hobbyist printing and toward the predictable, high-quality results required for professional functional art. Whether you are fixing fit issues in door strike plates or crafting a centerpiece for a gallery, precision is the difference between a "printed object" and a piece of "architectural lighting."

Disclaimer: This article is for informational purposes only. When designing lighting fixtures, always ensure that your electrical components are installed by a qualified professional and that the heat generated by the light source does not exceed the heat deflection temperature of the 3D printed material used.
