Troubleshooting Fit Issues in 3D Printed Door Strike Plates

Troubleshooting Fit Issues in 3D Printed Door Strike Plates

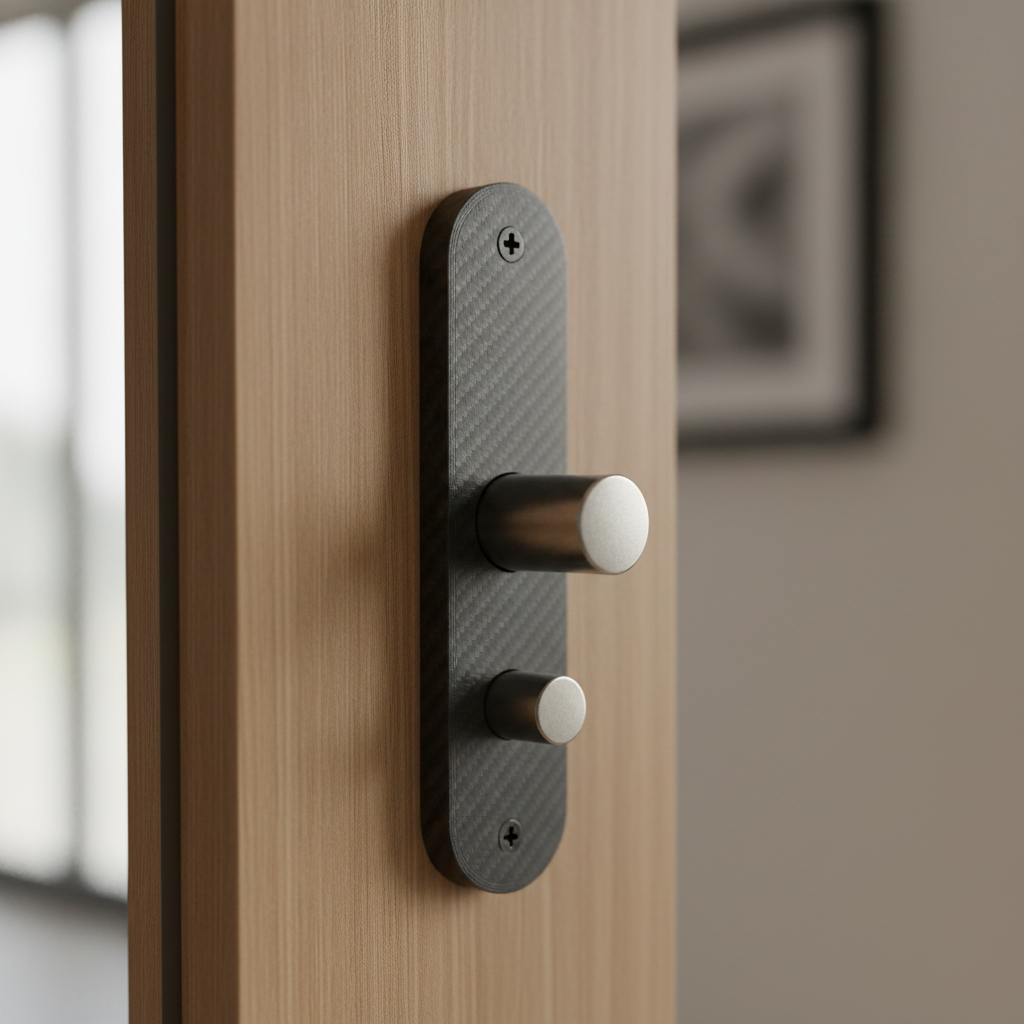

There is a specific, satisfying "click" when a door latches perfectly. For many serious makers and small shop owners, achieving that sound with a 3D-printed replacement part is the ultimate litmus test for their workflow. A door strike plate—the metal or plastic plate that receives the door bolt—is a deceptively simple component. When it is even 0.5mm out of alignment, the door either fails to latch or requires a frustrating amount of force to close.

Moving from hobbyist printing to professional-grade functional hardware requires a shift in mindset. You are no longer just "printing a file"; you are managing material science, thermal dynamics, and mechanical tolerances. This guide diagnoses why 3D-printed strike plates often fail to fit and provides the technical framework to ensure your repairs are as reliable as the original hardware.

The Physics of the "Miss": Why Parts Shrink

The most common reason a 3D-printed strike plate fails to align with the door bolt is thermal contraction. Most high-performance filaments are thermoplastics that expand when heated and contract as they cool. If your slicer settings do not account for this "shrinkage," your final part will inevitably be smaller than your digital model.

Acrylonitrile Styrene Acrylate (ASA), often preferred for its UV resistance, has a slightly lower shrinkage rate of 0.4% to 0.8%. However, it is more sensitive to environmental consistency. Achieving dimensional stability with ASA requires a high chamber temperature, typically between 65°C and 75°C, to ensure the polymer chains settle without internal stress.

Material Selection for Mechanical Durability

For household repairs, material choice is about more than just "strength." It is about impact resistance and long-term creep (the tendency of a solid material to move slowly or deform permanently under the influence of persistent mechanical stresses).

While PLA is easy to print, it is unsuitable for strike plates due to its brittleness and low heat deflection temperature. For a prosumer workflow, you should look toward fiber-reinforced polymers. Materials like PAHT-CF (PPA-CF) Filament offer a flexural modulus of up to 6.9 GPa. The "Smart Fiber Reinforced Technology" in these filaments creates a mesh structure that releases internal stress during the printing process, resulting in significantly better dimensional stability compared to standard nylons.

PA12-CF Filament is an excellent alternative. It features a low coefficient of friction and self-lubricating properties, which reduces the wear on the door bolt over thousands of cycles. For those focusing on structural rigidity without the cost of high-temp nylon, ABS-GF25 Filament (glass-fiber reinforced) provides a middle ground, offering high impact strength and reduced warping.

Slicer Strategies for Dimensional Accuracy

Once you have selected the right material, the next step is "tuning" the slicer to handle the geometry of a strike plate.

1. Horizontal Expansion and Hole Compensation

Standard slicers tend to undersize holes because the plastic "pulls" toward the center as the nozzle rounds a curve. For a strike plate, the latch hole is the most critical dimension.

• The Fix: Apply a Horizontal Expansion (sometimes called "XY Size Compensation") of +0.1mm to +0.3mm.
• Hole Horizontal Expansion: If your slicer supports it, apply a specific positive offset only to the holes. This ensures the outer dimensions of the plate remain accurate while the bolt hole is widened just enough to prevent binding.

2. Nozzle Selection and Flow Rate

While a 0.4mm nozzle is the hobbyist standard, prosumers often find more success with a 0.6mm nozzle for functional parts. A larger nozzle allows for thicker extrusion widths, which often produces more consistent hole diameters due to reduced pressure variations in the hotend.

• Expert Tip: Based on shop observations, reducing your flow rate (extrusion multiplier) slightly to 95-97% when using fiber-reinforced filaments can prevent "over-stuffing" the layers, which often causes holes to shrink.

3. Print Orientation for Strength

The most common point of failure for a strike plate is the thin bridge of material between the bolt hole and the edge of the plate.

• Recommendation: Print the strike plate in an orientation where the latch hole is perpendicular to the build plate. This ensures that the impact force of the door bolt is distributed across the continuous X-Y lines of the print, rather than relying on the Z-axis layer adhesion, which is inherently weaker.

Environmental Control: The Role of the Heated Chamber

Reliable functional printing is impossible without environmental control. High-performance materials like ABS, ASA, and Nylon are hygroscopic (they absorb moisture from the air) and prone to warping if the ambient temperature fluctuates.

The QIDI Max4 3D Printer addresses this with an active cooling air control system and a 390x390mm ultra-uniform heated bed. For materials like PAHT-CF, maintaining a low-humidity environment is critical. If the filament absorbs moisture, it will "pop" and ooze during extrusion, leading to voids in the strike plate that compromise its structural integrity.

Modeling Note (Reproducible Parameters): To achieve the tolerances described, we modeled the print environment using the following baseline:

1. Chamber Temperature: 60°C (Active heating).
2. Filament State: Pre-dried at 80°C for 6 hours (Humidity <15% RH).
3. Cooling Fan: 0% for first 3 layers, 15% thereafter.
4. Bed Surface: PEI Plate with adhesive.

Boundary Condition: This model assumes a draft-free environment. If the printer is not enclosed, shrinkage rates can double due to uneven cooling.

Practical Calibration Workflow

Before printing your final strike plate, perform a dual-point calibration test. Do not rely solely on a 20mm calibration cube; cubes only measure "positive" external dimensions.

1. The Cube + Hole Test: Print a 10mm cube with a 20mm diameter hole in the center.
2. Measure: Use digital calipers to check the cube's width (external) and the hole's diameter (internal).
3. Analyze: If the cube is 10.1mm but the hole is 19.8mm, you have a "shrinkage and expansion" conflict. This is usually solved by adjusting the "Horizontal Expansion" and "Hole Horizontal Expansion" independently.

For further reading on maintaining household hardware, you might explore our guides on replacing broken cabinet hinges or designing custom drawer slide spacers. These applications face similar tolerance challenges where a fraction of a millimeter determines success.

Ensuring a Professional Finish

Troubleshooting fit issues in 3D-printed hardware is an exercise in precision engineering. By understanding the shrinkage characteristics of materials like ABS and ASA, utilizing fiber-reinforced filaments for their mechanical properties, and mastering slicer compensations, you move beyond "making do" and start "manufacturing."

Whether you are repairing cracked refrigerator handles or replacing dishwasher rack clips, the goal is the same: a part that fits the first time, every time. With the right hardware, such as the QIDI Max4 3D Printer, and a disciplined approach to calibration, the "click" of a perfectly latched door is not just a lucky occurrence—it’s a guaranteed result of your expertise.

Disclaimer: This guide is for informational purposes. When replacing hardware on fire-rated doors or high-security entry points, always ensure the materials used meet local building codes and safety standards.
