Why Chamber Heating Prevents Cracks in Nylon Kitchen Aids

The Invisible Challenge of Functional Kitchen 3D Printing

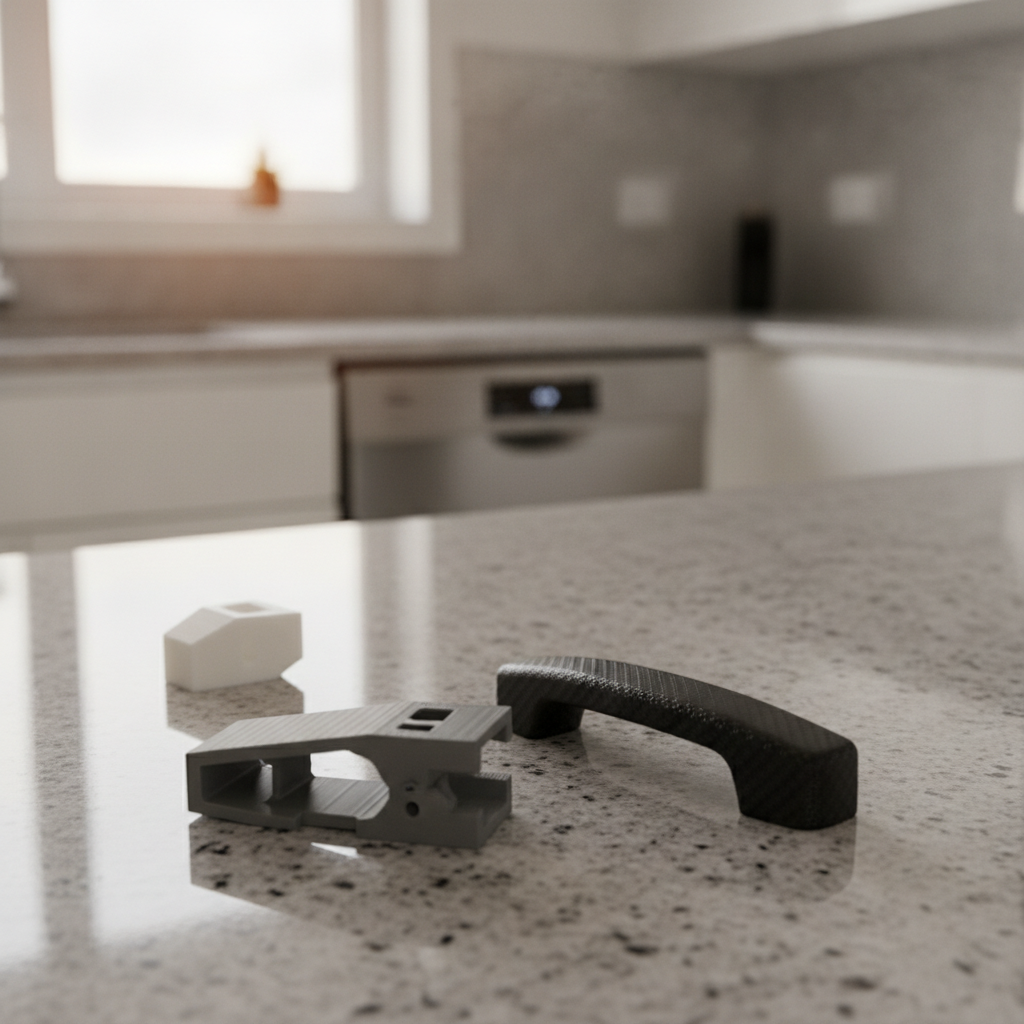

Transitioning from decorative hobby prints to functional engineering projects is a significant milestone for any maker. You move away from aesthetic figurines toward parts that must perform a job—often in harsh environments. In the world of high-performance kitchen aids, such as dishwasher-safe rack clips, custom handles, or heat-resistant spacers, Nylon is the material of choice due to its incredible toughness and chemical resistance.

However, many prosumers encounter a frustrating pattern: a Nylon part looks flawless on the build plate, feels sturdy in the hand, but fails catastrophically after three weeks of use or a few cycles in the dishwasher. These failures often appear as full-blown delamination cracks or warped geometries that no longer fit.

The culprit isn't usually the filament quality or the nozzle temperature; it is residual internal stress. This phenomenon is a result of uneven cooling during the printing process. Without active chamber heating—a technology we consider a non-negotiable tool for professional-grade results—Nylon is prone to locking in micro-strains that act like a ticking time bomb.

Understanding the "Dishwasher Failure" Mechanism

To understand why chamber heating is essential, we must first look at what happens inside a part when it enters a dishwasher. A standard dishwasher cycle involves 70°C (158°F) steam and high-pressure water. This environment attacks 3D-printed Nylon in two specific ways:

Thermal Expansion: As the material heats up, it expands. If the part was printed in a cold environment, the outer layers cooled and solidified faster than the core. This creates a "tug-of-war" where the core is trying to shrink while the outer shell is already rigid. When the dishwasher's heat is applied, these pre-existing internal stresses are "unlocked," driving existing micro-cracks into full delamination.
Moisture-Induced Swelling: Nylon is hygroscopic, meaning it absorbs water. Materials like Nylon and its variants require careful management of moisture to maintain structural integrity. In a dishwasher, the steam forces water into the molecular structure of the Nylon, causing it to swell. If the layer adhesion is weakened by residual stress, this swelling acts as a mechanical wedge, splitting the layers apart.

Why Active Chamber Heating is the Professional Solution

Active chamber heating (maintaining the air around the print at 60°C or higher) solves the root cause of these failures by controlling the rate of crystallization. Nylon is a semi-crystalline polymer. If it cools too quickly, the polymer chains do not have time to align properly, leading to a disorganized, brittle structure with high internal tension.

By keeping the environment hot, the entire part stays above its glass transition temperature longer. This allows the layers to "relax" and bond more effectively, significantly reducing the micro-strains that lead to later cracking. In our observations of functional kitchen components, parts printed with an active chamber temperature of 65°C showed a dramatic increase in longevity compared to those printed in a passive enclosure.

The Role of Carbon Fiber Reinforcement

For makers demanding the highest level of reliability, using a carbon-fiber-reinforced filament like PA12-CF Filament provides a secondary layer of protection. The "fiber mesh" structure within the filament helps distribute stress more evenly and significantly reduces the coefficient of thermal expansion.

As noted in ScienceDirect's review of carbon fiber reinforced polymers, adding carbon fiber to a polymer matrix improves mechanical properties and heat resistance. In a kitchen context, this means your clips or handles are less likely to swell or warp when exposed to steam, maintaining their "ready-to-run" performance over hundreds of cycles.

Step-by-Step Workflow for Reliable Nylon Kitchen Aids

To achieve professional results that survive the dishwasher, follow this "Ready-to-Run" protocol:

Dry the Filament (Mandatory): Nylon is extremely sensitive to moisture. Even a "new" roll can contain enough water to cause bubbles and weak layer lines. Dry your UltraPA Nylon Filament (PPA) for 4-6 hours before printing.
Set the Chamber Temperature: Set your active chamber heater to at least 60°C. For high-performance materials like PAHT-GF (PPA-GF) Filament, a chamber temp of 65°C is often beneficial to prevent warping of larger parts.
Optimize Nozzle and Bed Temps: Use a hardened steel nozzle (as CF and GF filaments are abrasive) at 280°C - 320°C. Keep the bed at 70-80°C to ensure initial layer adhesion.
Annealing (Post-Processing): After the print is finished, do not remove it immediately. Let the chamber cool down slowly to room temperature. For maximum strength, place the part in an oven for another 4-6 hours. This "relaxes" any remaining internal stresses.

QIDI PA12-CF 3D Printer Filament - High-performance carbon fiber reinforced nylon filament for industrial-grade prints with excellent dimensional stability.

Common Pitfalls to Avoid

Even with the right equipment, small errors can lead to part failure. Based on common patterns from customer support and engineering feedback, here are the most frequent mistakes:

Using PLA or PETG for Dishwasher Clips: While PETG is often used for simple repairs, it often softens at dishwasher temperatures (Glass Transition ~70°C). Nylon or PPA is a much more reliable choice for long-term use.
Ignoring the Cooling Fan: For Nylon, the cooling fan should be off or at a very low setting (max 10-20%). Rapid cooling from a fan is the fastest way to introduce the very stresses we are trying to avoid.
Inadequate Infill Density: For functional kitchen aids, use at least 40% infill with a "Gyroid" or "Cubic" pattern. These 3D patterns provide equal strength in all directions, helping the part resist the multi-directional stresses of thermal expansion.

Summary of Key Takeaways

Building durable kitchen accessories requires a shift in mindset from "making it look good" to "making it survive." Active chamber heating is the bridge between these two goals. By maintaining a stable, high-temperature environment, you ensure that your Nylon parts crystallize uniformly, bonding layers together without the hidden "time bomb" of internal stress.

When combined with advanced materials like PA12-CF Filament and proper post-processing, your 3D-printed kitchen aids will not only look professional but will withstand the rigors of daily use and high-heat cleaning cycles.

Disclaimer: This article is for informational purposes only. When creating items for food contact or high-heat environments, ensure the materials used are certified as food-safe by the manufacturer and comply with local health regulations. Always test printed parts in a controlled environment before putting them into service.
