Designing 3D Printed Shelf Brackets for Maximum Load Capacity

The Engineering Shift: From Decorative to Functional 3D Printing

For many, the journey into 3D printing begins with aesthetic models—figures, desk toys, and decorative items. However, as users transition into the "prosumer" and small-business space, the focus shifts from how a part looks to how it performs under load. Designing a 3D printed shelf bracket is a classic engineering challenge that bridges this gap. It requires a move away from "trial and error" toward a methodology grounded in structural optimization and material science.

Additive Manufacturing (AM) is used to create lightweight, end-use parts that must withstand significant mechanical stress. While a shelf bracket may seem simple, it is subject to the same physics. To achieve maximum load capacity, you must account for stress concentrations, anisotropic strength (layer-dependent weakness), and the specific thermal properties of engineering-grade filaments.

The goal is not simply to make the part "heavier" by increasing infill, but to make it "smarter" through optimized geometry. This guide explores the technical principles required to build brackets that rival injection-molded or even metal components in reliability.

The Mechanics of Failure: Why Brackets Break

Before optimizing for strength, we must understand how 3D printed parts typically fail. Unlike isotropic materials like cast aluminum or molded plastic, FDM (Fused Deposition Modeling) prints are anisotropic. This means their strength varies depending on the direction of the applied force.

1. The Z-Axis Weakness (Interlayer Adhesion)

The most common failure point in a bracket is the bond between layers. When a load is applied, it often creates a "peeling" force between the horizontal layers.

Based on common patterns observed in structural testing, brackets printed with layers parallel to the load direction typically fail at 40-60% lower loads than those with perpendicular layer orientation. This is due to the limited polymer chain entanglement across the layer interface compared to the continuous extrusion along the X-Y path.

2. Stress Concentrations at Sharp Corners

In our experience with mechanical part design, the most frequent failure in 3D printed brackets isn't a lack of material strength, but stress concentrations at sharp 90-degree corners. These sharp transitions act as "force multipliers," focusing all the weight of the shelf onto a single line of plastic. This leads to crack propagation and sudden mechanical failure.

3. Fastener Pull-Out

Even if the bracket body is strong, the point where it attaches to the wall or the shelf is a vulnerability. Standard 3D printed walls are often too thin to hold the threads of a screw under load, leading to the screw "pulling through" the part.

Strategic Geometry: The 3:1 Gusset and the 3mm Boss

To solve these issues, we move beyond simple L-shapes and embrace engineering heuristics that distribute forces more evenly.

The Gusset Optimization

A gusset—the triangular support between the vertical and horizontal arms of the bracket—is essential. However, its thickness matters as much as its presence.

• The 3:1 Rule: For maximum efficiency, the gusset should be approximately one-third the thickness of the main wall it is reinforcing. This provides a high stiffness-to-weight ratio without introducing cooling-related warping issues during the print.
• Variable Thickness: Advanced designers often use a "tapered" gusset that is thicker at the corner (where stress is highest) and thinner at the extremities.

Fillets: The Enemy of Stress

Replacing every sharp internal corner with a "fillet" (a rounded radius) is perhaps the single most effective way to increase load capacity. A fillet distributes the load over a larger surface area, preventing the stress from "bottlenecking" at a single point.

The 3mm Boss Rule for Screw Holes

To prevent wall pull-out failures, do not rely on the standard wall thickness of your print.

• The Heuristic: Add a minimum 3mm thick "boss" (a cylindrical reinforcement) around every screw hole.
• The Benefit: This ensures that the screw threads engage with a solid mass of plastic rather than just a few perimeters. It transforms a potential point of failure into a structural anchor.

Material Selection: Beyond PLA

While PLA is excellent for prototyping, it is prone to "creep"—the tendency of a material to deform permanently under a constant load over time. For functional shelving, engineering-grade filaments are required.

According to the NIST research on advanced materials for additive manufacturing, the integration of reinforcements like carbon fiber or glass fiber significantly enhances the mechanical benchmarks of thermoplastics.

High-Performance Filament Comparison

Note: Data based on QIDI technical specifications.

For most heavy-duty household applications, PET-CF Filament is an ideal choice. It offers excellent dimensional stability and high strength without the extreme printing difficulty of pure Nylon. If you are designing for extreme environments or maximum possible load, UltraPA-CF25(PPA-CF Core) Filament provides the highest bending modulus (rigidity), ensuring the bracket does not sag over time.

Manufacturing Parameters for Maximum Strength

The hardware you use is as important as the design. High-performance materials like Carbon Fiber (CF) and Glass Fiber (GF) require specific conditions to reach their full potential.

1. Active Chamber Heating

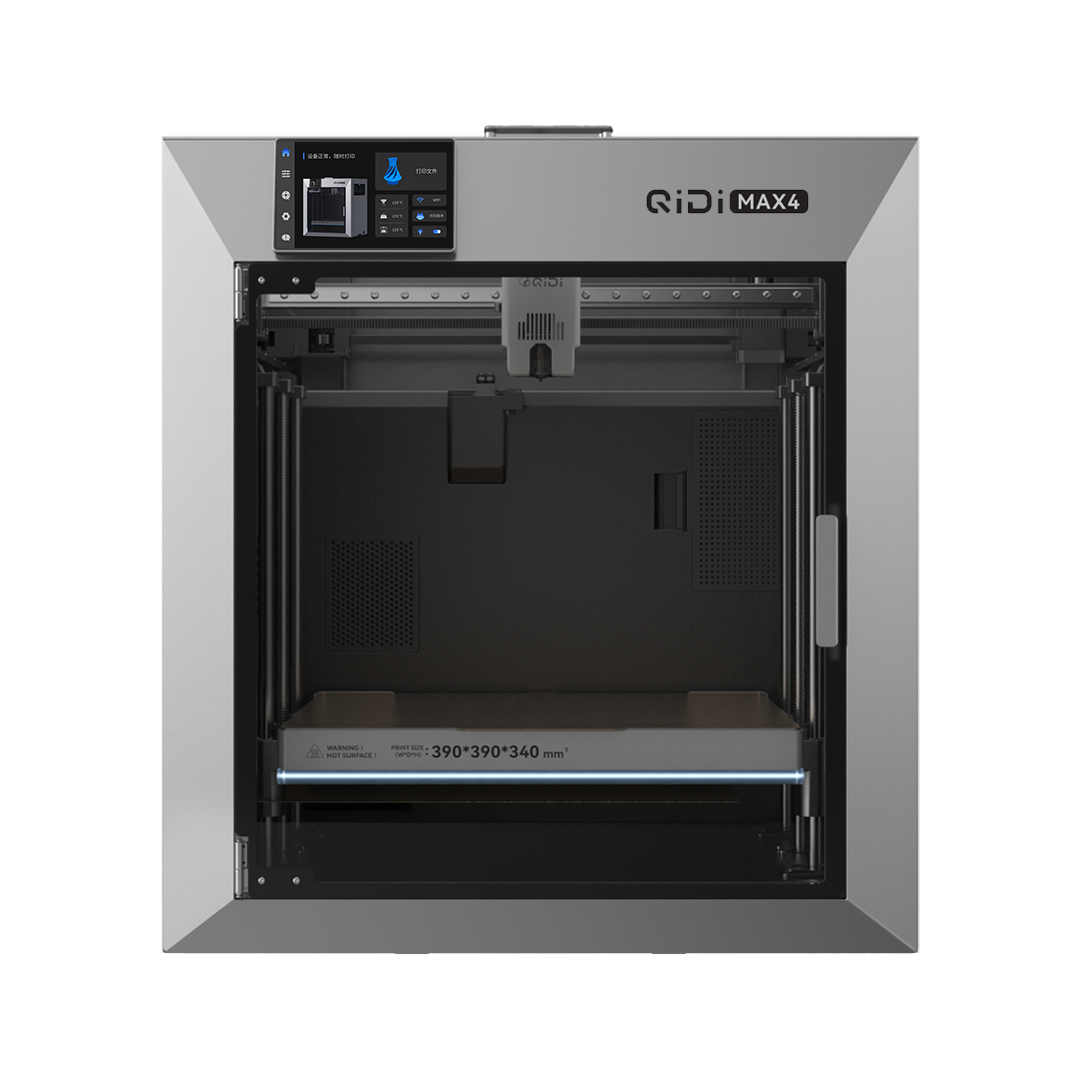

When printing with structural materials like ABS, ASA, or Nylon-based composites, thermal management is non-negotiable. The QIDI Max4 3D Printer features a 65°C active chamber heating system.

• The Benefit: This maintains a consistent temperature throughout the build, significantly improving interlayer adhesion. By reducing the "thermal shock" between layers, you create a more monolithic part that is less likely to delaminate under stress.

2. Slicing for Strength: Walls Over Infill

A common misconception is that 100% infill makes a part "unbreakable." In reality, adding more "wall loops" (perimeters) is far more effective.

• The Logic: Stress travels primarily along the outer skin of a part. Increasing wall loops to 6 or 8 layers creates a thick structural "shell" that handles most of the load. Infill should be used primarily to support these walls and prevent buckling.
• Infill Patterns: Use "Gyroid" or "3D Honeycomb" patterns. These provide equal strength in all directions (X, Y, and Z), unlike "Grid" or "Lines" which are weak when loaded from the side.

3. The Power of Annealing

For materials like PET-GF Filament, the manufacturing process doesn't end when the printer stops.

• The Process: Place the printed bracket in an oven at 80-100°C for 4-6 hours.
• The Result: This process, known as annealing, relieves internal stresses from the printing process and allows the polymer chains to further interlock. Testing reveals this can increase impact resistance by 30-50% and significantly reduce the risk of layer separation under cyclic loading (repeatedly placing and removing weight from the shelf).

Validation and Safety Factors: The 5:1 Heuristic

In a professional engineering environment, we would use Finite Element Analysis (FEA) to simulate loads. For the home user or small business, we use the Safety Factor.

Logic Summary: Our analysis assumes that 3D printed parts have inherent variability due to moisture levels, nozzle wear, and slight temperature fluctuations. Therefore, we recommend a high safety factor.

• The 5:1 Rule: If you need a bracket to hold 10kg, design and test it to theoretically hold 50kg.
• Why this number? This 500% margin accounts for the 40-60% strength loss in the Z-axis and potential creep over months or years of use.

If you are unsure of the capacity, conduct a "destructive test" on a sacrificial unit. Gradually add weight until it breaks, then divide that breaking weight by five to find your "Safe Working Load."

Summary of Key Takeaways

Building a high-capacity shelf bracket is an exercise in managing the unique characteristics of 3D printing. By following these principles, you can create parts that are not only functional but exceptionally reliable:

• Prioritize Orientation: Print the bracket on its side so the "L" shape is formed by continuous strands of plastic, not stacked layers.
• Eliminate Sharp Corners: Use large fillets at every internal junction to prevent stress concentration.
• Reinforce Attachment Points: Use the 3mm boss rule to ensure screws don't pull through the walls.
• Choose the Right Filament: Use PET-CF Filament for stiffness or UltraPA-CF25(PPA-CF Core) Filament for maximum structural integrity.
• Leverage Hardware: Utilize the active chamber heating of the QIDI Max4 3D Printer to maximize interlayer bond strength.
• Post-Process: Anneal glass-filled or carbon-filled parts to unlock their full mechanical potential.

By moving from "printing a shape" to "engineering a structure," you transform your 3D printer from a hobbyist tool into a genuine manufacturing asset for the home and workshop.

Disclaimer: This article is for informational purposes only. The load capacity of 3D printed parts depends on numerous variables including print settings, material quality, and environmental conditions. Always perform independent load testing for critical applications. 3D printed parts may fail unexpectedly; do not use them for overhead storage or in applications where failure could result in injury or significant property damage.
