Tips for Printing Glow-in-the-Dark Filament Without Ruining Your Nozzle

What makes it glow (and what makes it abrasive)

Glow-in-the-dark filament is standard PLA (sometimes PETG) loaded with phosphorescent particles. The good stuff uses strontium aluminate doped with europium and dysprosium (SrAl₂O₄:Eu,Dy). The cheap stuff uses zinc sulfide. The difference matters.

The mechanism is persistent luminescence, not a battery or a chemical reaction. Incoming light lifts electrons in the crystal into traps created by lattice defects; those traps then release the electrons slowly over minutes to hours, and each release emits a photon. Co-doping with dysprosium deepens the traps, which is exactly why strontium aluminate holds its afterglow so much longer than older phosphors.

That roughly ten-fold gap is not marketing copy. A review of persistent luminescence in Eu-doped compounds traces it back to Matsuzawa's 1996 report that SrAl₂O₄:Eu,Dy was more than ten times brighter than the ZnS:Cu,Co phosphor it replaced. Research on PLA composites loaded with strontium aluminate also confirms the practical trade-off you feel when printing: more phosphor gives more glow, and also stiffer, more abrasive material.

The particles are typically 20-50 microns in diameter and make up around 15-30% of the filament by weight. They are mineral crystals, hard enough to score glass, which puts them well up the Mohs hardness scale compared with the brass a standard nozzle is made from. That hardness is what creates the nozzle wear problem. The PLA base is harmless. The glowing rock dust embedded in it is not.

Is glow-in-the-dark filament abrasive?

Yes. Glow filament is abrasive, and it is abrasive in the same way carbon fibre and glass fibre filled filaments are: hard mineral particles suspended in soft plastic. The plastic passes through the nozzle harmlessly; the particles scrape the bore on the way out. A 0.4 mm brass nozzle shows measurable enlargement after 0.5-2 kg of glow filament. Use hardened steel or a bimetal nozzle and the problem effectively disappears.

The nozzle wear problem

A standard brass nozzle (0.4mm bore) can be noticeably enlarged after printing just 0.5-2kg of glow filament. The abrasive particles erode the bore from 0.4mm toward 0.6mm or larger, at which point print quality degrades: over-extrusion, loss of fine detail, dimensional inaccuracy. CNC Kitchen's nozzle wear testing with abrasive filaments showed measurable bore enlargement that directly correlated with print quality loss.

Nozzle options

Hardened steel is the practical answer. It costs a few dollars more, lasts 25-100 times longer, and handles every abrasive filament you'll encounter: glow-in-the-dark, carbon fiber, glass fiber, metal-fill. The lower thermal conductivity means you may need to print 5-10°C hotter or slightly slower than with brass, but that's a minor adjustment.

Bimetal nozzles solve that trade-off by putting a hardened steel tip on a high-conductivity body, which is why they ship as standard on current QIDI machines. If you are replacing one, the tungsten carbide bimetal nozzle is the longest-lasting option for a machine that sees a lot of abrasive material.

Ruby-tipped nozzles combine a brass body (excellent thermal conductivity) with a synthetic ruby wear surface. They're expensive, but if you print a lot of abrasive filaments, they're worth considering. For occasional glow prints, a $10 hardened steel nozzle does the job.

Know the signs of nozzle wear: prints appearing thicker than expected, loss of fine detail on small features, first-layer lines wider than your slicer settings, and visible stringing that wasn't there before.

Print settings for glow filament

The slower speed matters. At 60-80mm/s, the abrasive particles experience more friction per unit time against the nozzle walls. At 30-50mm/s, the same filament length passes through with less aggressive contact. Combined with the hardened steel nozzle, this keeps wear manageable.

Both the Plus4 and Q2 ship with bi-metal nozzles (hardened steel tip, brass body), so you can print abrasives without sacrificing thermal conductivity or sourcing third-party parts. For a quick primer on storing filament properly, glow filament follows the same rules as standard PLA: sealed container with desiccant, away from direct sunlight (which can partially discharge the glow particles and, over long exposure, degrade the PLA base).

How to charge glow-in-the-dark prints

Charging means exposing the print to light so the phosphor traps refill. The wavelength matters far more than the brightness: strontium aluminate absorbs strongly in the near-UV and blue range, and barely at all in red or warm yellow light. That is why a print left under a warm incandescent lamp all afternoon glows worse than one held under a UV torch for a minute.

How to make glow prints work without sunlight

You do not need the sun at all. Three approaches cover every indoor situation:

• A cheap UV torch. A 395 nm flashlight charges a print more completely in under a minute than a whole day of indoor lighting. This is the single best answer if you want the print bright on demand.
• Cool white LEDs. Ordinary 5000-6500 K room or desk lighting has enough blue content to charge strontium aluminate over 15-30 minutes. Place the object where the light actually falls on it, not in a shadowed corner.
• A UV LED strip built into the project. For a permanent installation such as a stair marker or a light-switch plate, a short 395 nm LED strip on a timer keeps the part charged continuously and uses a fraction of the power a lamp would.

What does not work: warm-white bulbs, candlelight, and screens. If a print looks dead after a full evening indoors, the light source is almost always the reason rather than the filament.

Maximizing glow brightness

Printing a glow-in-the-dark object is easy. Printing one that actually glows visibly in a dark room requires some intentional choices.

Wall thickness and infill

More plastic means more strontium aluminate particles, which means brighter glow. Print with 3-4 walls minimum (1.2-1.6mm total wall thickness with a 0.4mm nozzle). Thin-walled prints with 10% infill glow dimly because there is less material absorbing and emitting light. Solid infill is wasteful, but 30-40% infill gives the walls enough backing to reflect light outward.

Base layer color

White or light-colored layers beneath glow layers act as a reflector. If you're printing a multicolor part, put the glow layer on the outside and a white PLA layer underneath. Light that would otherwise be absorbed into the infill bounces back through the glow surface instead. On dual-extruder setups or with a filament swapper, this is a straightforward improvement. For single-material prints, the effect is less relevant since the entire part contains glow particles.

Glow duration and colour choice

After charging, expect 15-30 minutes of clearly visible glow in a dark room, followed by a dim glow that can last 6-8 hours. The glow is brightest in the first 2-3 minutes and decays exponentially, so a print that looks weak after an hour is behaving normally.

Green glow filament is the brightest colour by a significant margin. Aqua and blue are dimmer, and orange or red are dimmest. Two things stack here: green phosphors are intrinsically the most efficient, and dark-adapted human vision peaks near 500 nm thanks to the Purkinje effect. If maximum visibility is the goal, choose green and do not fight it.

Project ideas that actually work

Glow filament is best suited for objects that benefit from being visible in the dark without electricity. Some practical applications:

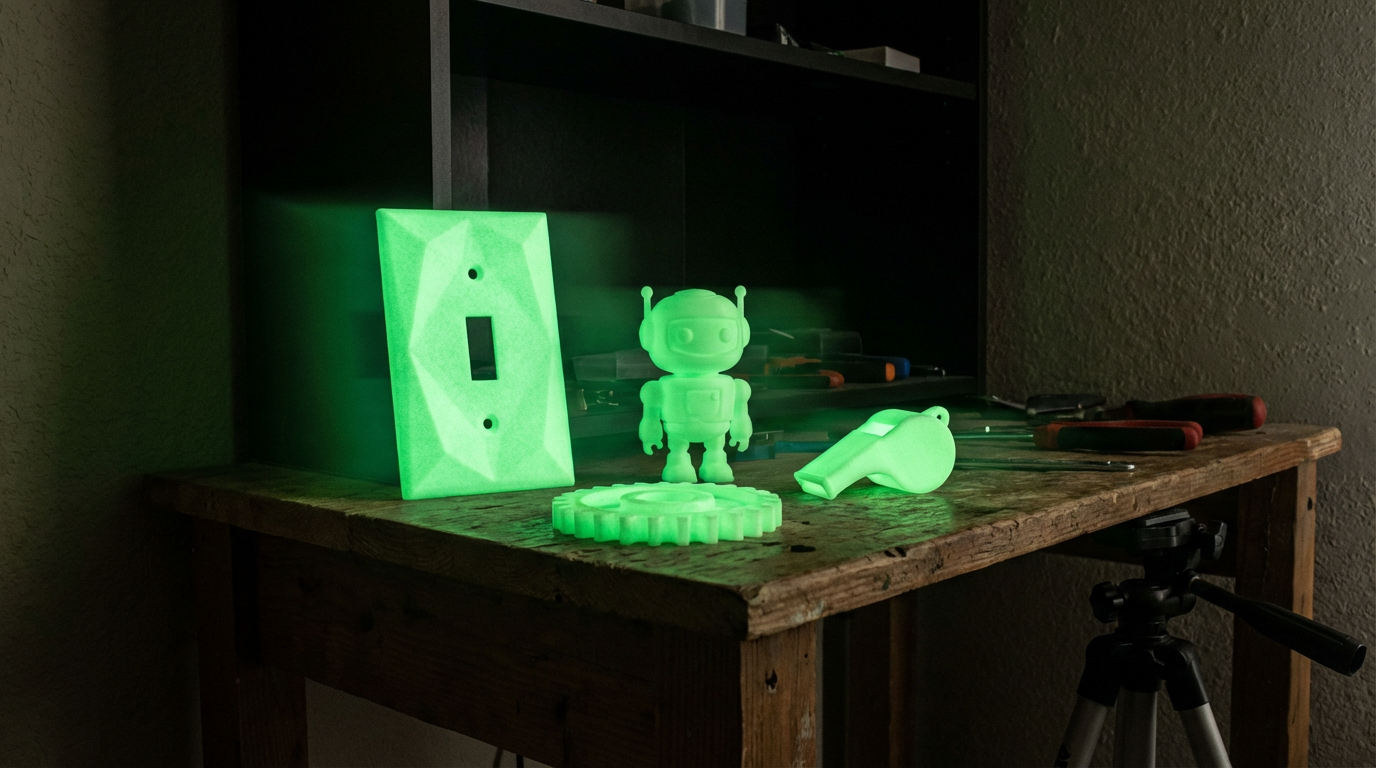

Light switch plates and outlet covers. Print at 0.3mm layer height with 4 walls for maximum glow. Charge from the room light during the day, visible when you walk into a dark room at night. This is one of the most common glow projects for good reason: the object sits exactly where the light falls all day and is exactly where you reach in the dark.

Stair edge markers. Small clips or strips that attach to stair edges. Useful for basements, garages, or anywhere you navigate in low light. Print in PETG-based glow filament if the stairs see heavy foot traffic.

Garden path markers. Stakes or dome shapes that charge from sunlight during the day. Note that outdoor UV exposure will slowly degrade PLA over months, so either coat with UV-resistant clear spray or plan to reprint seasonally.

Night lights. Print a thin-walled lithophane or decorative shape. The glow won't replace an LED night light for brightness, but it works as an ambient indicator without any wiring. Useful in kids' rooms or hallways.

Keychains and bag tags. Small items where visibility in a dark bag or drawer is helpful. These charge from ambient room light throughout the day.

For more functional print ideas, the filament types guide covers what each material does well. And if you're combining glow prints with water exposure (garden use, aquarium decorations), the guides on PLA water resistance and PLA in aquariums cover the durability side.
