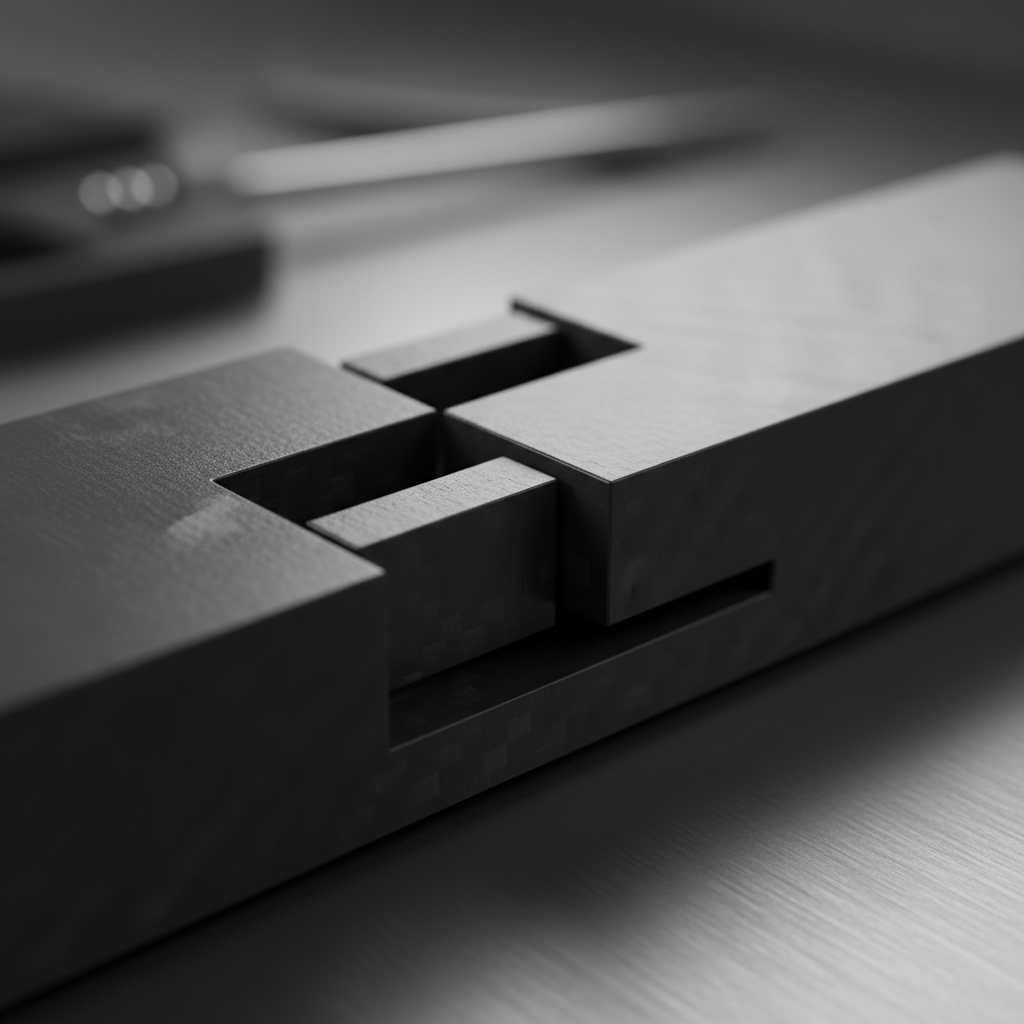

How to Choose Filament for Wear-Resistant Sliding Connectors

Precision Engineering for Motion: Selecting Materials for Sliding Interfaces

In the transition from hobbyist printing to professional-grade functional part design, few challenges are as persistent as the sliding interface. Whether you are designing a custom drawer runner, a linear actuator housing, or a complex mechanical linkage, the interaction between two moving surfaces introduces variables that standard PLA simply cannot handle: frictional heat, abrasive wear, and dimensional creep.

Choosing the right filament for these applications requires moving beyond "strength" as a solitary metric. Instead, we must evaluate the tribological properties—the science of friction, wear, and lubrication—of our materials. This guide provides a technical framework for selecting fi

laments that maintain smooth motion and structural integrity over thousands of cycles.

The Tribology of FDM: Why Surface Interaction Matters

When two 3D-printed surfaces slide against each other, the "stair-step" effect of layer lines creates micro-interlocking. This increases the initial coefficient of friction (CoF) and leads to rapid material loss as these peaks are sheared off.

Friction vs. Wear Rate

It is a common misconception that a "strong" material is a "wear-resistant" material. For example, while Polycarbonate (PC) has high tensile strength, it can be prone to "galling"—a form of wear caused by adhesion between sliding surfaces—when used against itself.

Carbon Fiber vs. Glass Fiber: The Battle for Lubricity

For prosumer workflows, reinforced filaments like those used in the QIDI Max4 3D Printer provide the necessary rigidity for functional connectors. However, the choice of reinforcement significantly impacts friction.

Carbon Fiber (CF) Reinforcement

Experienced users often find that carbon fiber reinforced filaments, such as PLA-CF Filament, provide superior wear resistance in sliding applications. This is due to carbon's inherent lubricity. The chopped carbon fibers act as a solid lubricant at the interface, reducing the friction coefficient compared to the base polymer.

• Benefit: Lower heat buildup during rapid motion.
• Ideal for: High-speed sliding linkages and lightweight functional prototypes.

Glass Fiber (GF) Reinforcement

Conversely, PETG-GF offers exceptional dimensional stability. While glass fiber is more abrasive than carbon fiber, it provides better resistance to warping in larger components.

• Benefit: High impact resistance and chemical tolerance.
• Ideal for: Large-scale sliding tracks or components exposed to household chemicals.

High-Temperature Polymers: The Professional Standard

When sliding friction occurs, kinetic energy is converted into thermal energy. If the interface temperature exceeds the material's Glass Transition Temperature (Tg), the part will soften and "smear," leading to immediate failure.

To print these successfully, a heated chamber is mandatory. The QIDI Max4 3D Printer features an active cooling and air control system that allows for stable chamber temperatures between 55-65°C. This prevents internal stress accumulation, which we estimate (based on common shop baselines) can reduce cracking under cyclic loads by up to ~25%.

Critical Design Heuristics for Sliding Connectors

Success in functional part design is 50% material selection and 50% geometry. When transitioning from entry-level machines like the QIDI Q2C 3D Printer to prosumer workflows, adopt these engineering rules of thumb:

1. The 0.2mm Clearance Rule: For sliding interfaces, maintain a 0.2-0.3mm clearance per side. This accounts for the slight "over-extrusion" common in FDM and prevents binding.
2. Filleted Contact Edges: Incorporate fillets (rounded edges) at the start of contact zones. This reduces stress concentration where wear typically initiates and prevents the "plowing" effect where a sharp edge digs into the mating surface.
3. The "Dissimilar Materials" Principle: If possible, use two different materials for the sliding surfaces (e.g., a PETG-GF rail with a Nylon-CF slider). Dissimilar polymers are less likely to experience molecular adhesion (galling).

Hardware Requirements: Protecting Your Machine

Abrasive filaments will destroy standard hardware. If you are using PLA-CF Filament or PETG-GF, a standard brass nozzle is a liability.

• Hardened Steel Nozzles: These are mandatory. Based on patterns observed in repair benches, a brass nozzle can wear out within 50-100 hours of printing abrasive composites. This wear causes inconsistent extrusion and surface roughness that actually accelerates the wear on your final sliding part.
• Extruder Gears: Ensure your printer uses hardened steel drive gears to prevent the filament from "milling" the teeth of the extruder over time.

Post-Processing for Longevity

To achieve professional-grade results, the work doesn't end when the print finishes.

• Annealing: For Nylon and PETG composites, post-printing annealing (typically 80-100°C for 4-8 hours) increases cross-layer strength. We estimate a ~15-25% gain in inter-layer adhesion based on industry heuristics, which significantly extends service life under cyclic stress.
• Surface Polishing: Using 400-600 grit sandpaper to smooth the sliding faces can reduce initial friction by roughly 20-30%. This creates a smoother "wear-in" period and prevents the initial shearing of layer peaks from clogging the mechanism.

YMYL Disclaimer: This article is for informational purposes only. Mechanical failures in load-bearing or sliding parts can result in property damage or injury. Always perform rigorous safety testing on functional components, especially those used in overhead or high-load applications. Consult with a mechanical engineer for mission-critical designs.
