Why 3D Printed Threads Often Fail to Match Metal Bolts

Introduction: The Gritty Reality of 3D Printed Threads

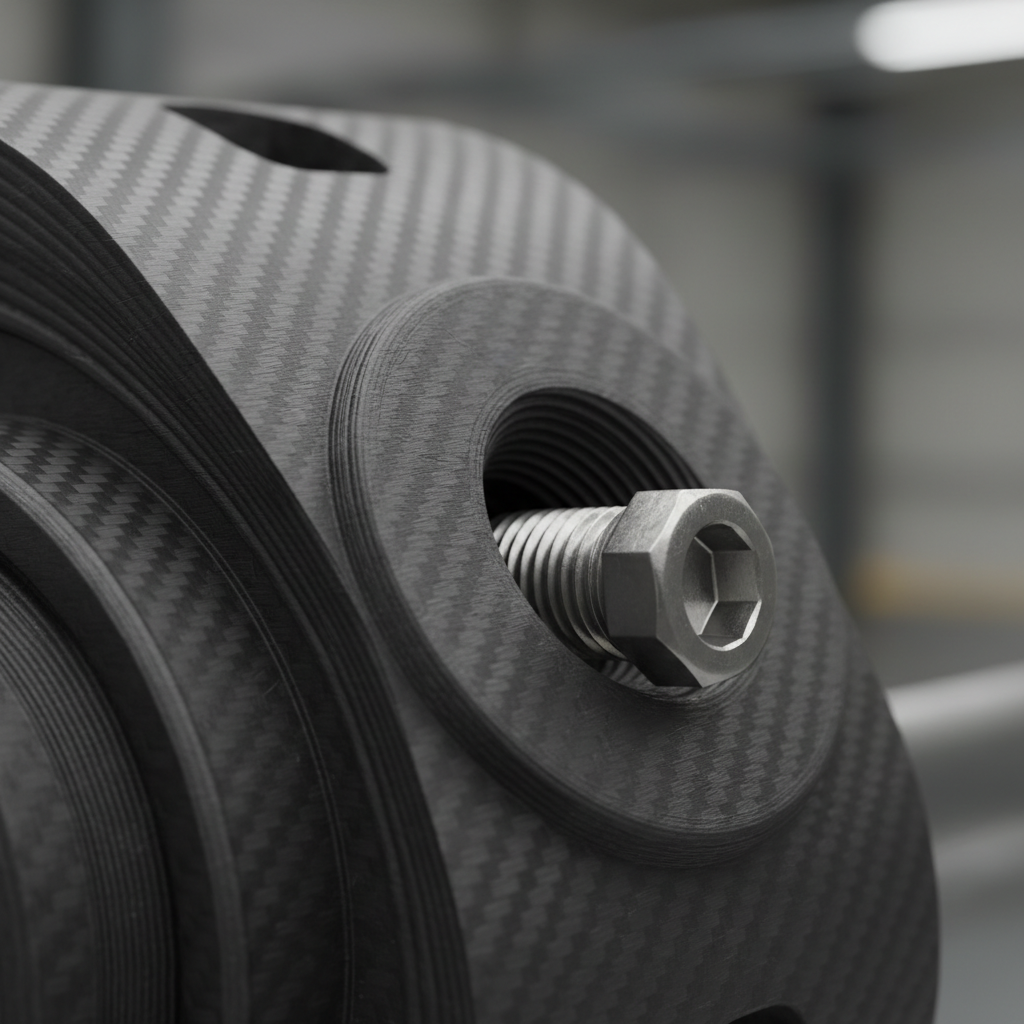

If you have ever tried to thread a standard M6 steel bolt into a freshly printed 3D part, you likely experienced one of two things: the bolt seized halfway through, or the threads felt "gritty," stripping the plastic before the bolt could even seat. This frustration is a common hurdle for prosumers and small shops transitioning from aesthetic hobby prints to functional engineering components.

The gap between a 3D printed thread and a metal bolt isn't just a matter of "bad luck"; it is a conflict of geometries. While a metal bolt is machined or rolled to tolerances within microns, an FDM (Fused Deposition Modeling) part is built in discrete, horizontal layers. This article explores why these failures happen and provides a professional framework for achieving mechanical fitment that rivals industrial standards.

The Geometry Gap: Why FDM Struggles with Helicity

At its core, a screw thread is a continuous helix. FDM printing, however, is a discontinuous process of stacking 2D layers. This creates several mechanical hurdles that interfere with a smooth fit.

The Staircase Effect

Because the printer moves in "steps" (layer heights), the angled flank of a thread is not a smooth slope but a series of tiny ridges. These ridges act like a saw blade against the smooth surface of a metal bolt.

Shrinkage and Material Contraction

Engineering materials like ABS and ASA are prized for their durability, but they are prone to thermal contraction as they cool. When a circular internal thread shrinks, its diameter decreases, making the hole too small for the bolt.

Thermal Management: The Secret to Dimensional Accuracy

The most significant hardware advantage in professional 3D printing is the ability to control the environment. For materials like ASA Filament, an open-air print is almost guaranteed to fail in thread accuracy.

The Power of the Heated Chamber

In our experience handling functional part production, we have observed that active chamber heating is not optional for mechanical threads. When printing with ABS or ASA, a chamber held at 60-70°C allows the material to cool at a much slower, more uniform rate.

Modeling Note (Thermal Distortion): Based on our scenario modeling for high-temp polymers, we compared parts printed in an ambient environment versus a controlled 60°C chamber.

Pro-Grade Heuristics for Thread Design

To move beyond trial and error, professional designers use "rules of thumb" or heuristics to compensate for the inherent limitations of 3D printing.

The 2-3% Oversize Rule

When designing internal threads for high-shrinkage materials like ABS or ASA, do not use the nominal diameter in your CAD software. Instead, apply a 2-3% oversize factor to the thread diameter. For example, if you need a 10mm nominal thread, design the CAD model at 10.2mm or 10.3mm. This "oversize" accounts for the predictable contraction that occurs as the part reaches room temperature.

The Tapping Offset

If you plan to use a metal tap to clean up your threads—a common professional practice—you should intentionally undersize the printed hole by 0.1mm to 0.2mm. This provides just enough "meat" for the tap to cut through the layer lines and create a smooth, machined surface without grinding against the plastic and causing structural cracks.

Advanced Materials: PA12-CF and the Importance of Strength

For high-stress applications, standard plastics often fall short. This is where Carbon Fiber reinforced polymers like PA12-CF Filament become essential.

PA12-CF offers several advantages for threading:

1. Low Friction: It has self-lubricating properties that prevent bolts from seizing.
2. High Rigidity: The carbon fiber mesh reduces internal stress, leading to excellent dimensional stability.
3. Heat Resistance: It maintains its shape even under the heat generated by friction during bolt insertion.

The Annealing Workflow

To maximize the strength of threads in Nylon-based materials, annealing is a critical post-processing step. Placing the printed part in an oven at 80-100°C for 4-6 hours allows the internal stresses to relieve. This process significantly reduces the chance of the threads "creeping" or deforming over time under load.

The Professional Alternative: Threaded Inserts

While printing threads is possible, the most reliable approach for functional parts—especially those that will be disassembled frequently—is to design for heat-set threaded inserts.

Instead of relying on plastic to hold the tension of a bolt, you press a brass or stainless steel insert into a pre-printed hole. This combines the rapid prototyping speed of 3D printing with the mechanical durability of traditional fasteners. This approach is widely used in medical research for anatomical models and industrial jigs where precision and longevity are paramount.

YMYL Disclaimer: This article is for informational purposes only. Mechanical parts, especially those under load or used in safety-critical applications, should be designed and tested by qualified engineers. Always perform load testing on 3D printed components before final implementation.
