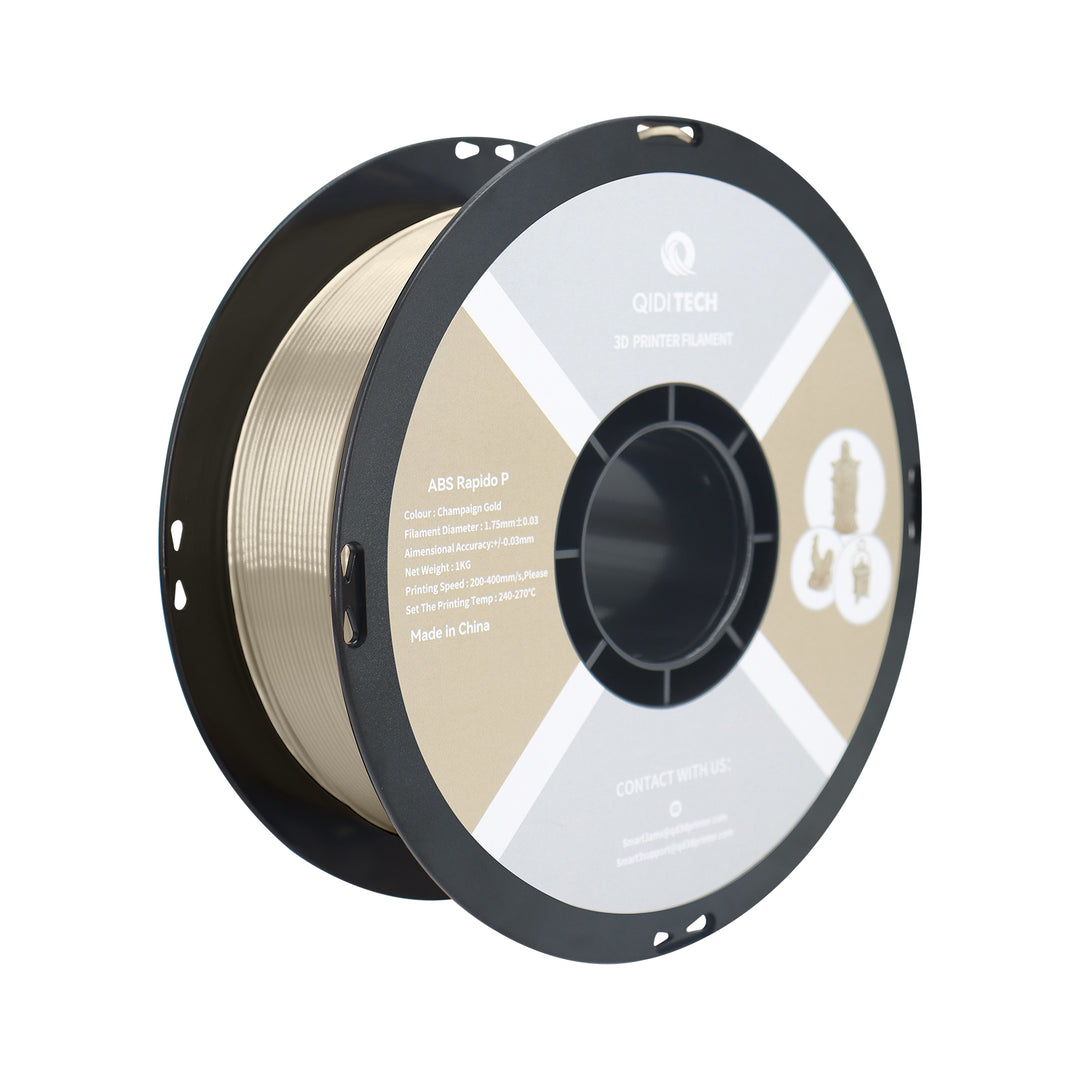

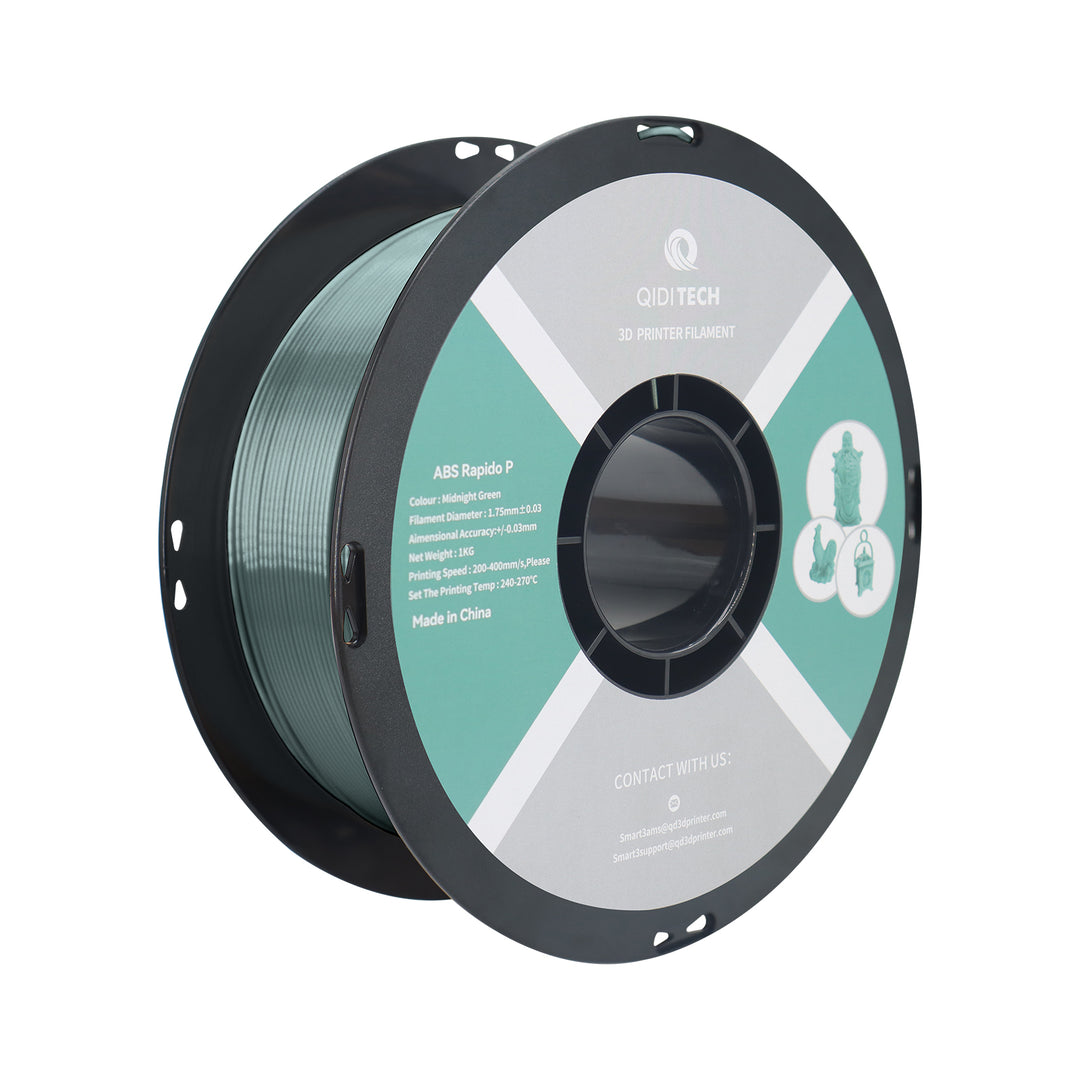

QIDI TECH ABS Rapido Metal Filament is a great choice for functional parts that require durability and decorative qualities. The no-paint metallic texture greatly enhances the texture and quality of the product.
QIDI ABS Rapido Metal filament 1.75mm. Works perfectly with most FDM 3Dprinters on the market.
Recommended | Not Recommended | |
Build Plate | QIDI PEI Plate, HF Plat, PC Plate and Smooth Plate | / |
Hotend | Brass/Copper plated Nozzle (0.2/0.4/0.6/0.8 mm) Bimetal Nozzle ( 0.4 / 0.6 / 0.8 mm) | Hardened Steel Nozzle ( 0.4 / 0.6 / 0.8 mm) |
Glue | Glue Stick/ 3D LAC adhesive spray | / |
Recommended Printing Settings | |
Drying Settings (Blast Drying Oven) | 60 °C,4-6 h |
Printing and Keeping Container's Humidity | < 15% RH (Sealed, with Desiccant) |
Nozzle Temperature | 220-250 °C |
Bed Temperature (with Glue) | 80~100 °C |
Printing Speed | 40-200 mm/s |
Physical Properties | |
Density | 1.05~1.07 g/cm³ |
Vicat Softening Temperature | 91 °C |
Heat Deflection Temperature | 75 °C |
Melting Temperature | 190 °C |
Melt flow rate | 30~40 g/10 min |
Mechanical Properties | |
Tensile Strength | 34~37 MPa |
Breaking Elongation Rate | 2%~4% |
Emodulus | 3400~4000 MPa |
Impact Strength | 22~28 kJ/m² |
1. ABS Metal is prone to moisture absorption, so it should be stored in a dry environment to prevent moisture from causing bubbles or surface defects during printing.
2.Rapid cooling can lead to cracks or uneven gloss on the surface of ABS Metal, so it is recommended to reduce the use of cooling fans during the printing process to avoid these issues.
For more details please refer to: Filament Guide on WIKI.
