Name: PA12-CF Filament
Brand: Qidi Tech
SKU: PA12-CF001
Price: 89.1 USD
Availability: InStock
Rating: 4.9 (57 reviews)

$99.00 USD $89.10 USD

Product Features

Superior Strength and Stiffness
Toughness & Vibration Resistance
Exceptional Thermal Resistance
Comes with High Temperature Spool
Diameter: 1.75mm +/- 0.02mm

Cautions for Use

0.2 mm Nozzle Not Compatible
Brass/Copper plated Nozzle Not Recommended
Dry before Use
Enclosed Printer Required

Ship From

CHINA

In stock, ready to ship
Backordered, shipping soon

Quantity

Please be advised that all orders from our global site are shipped from our warehouse in China. Therefore, shipping costs vary depending on your destination country/region. See our Shipping policy for details.

Additionally, please note that customs clearance fees may be applied by your local authorities upon arrival. These fees are the sole responsibility of the recipient.

[{"id":41888469778572,"title":"CHINA","option1":"CHINA","option2":null,"option3":null,"sku":"PA12-CF001","requires_shipping":true,"taxable":false,"featured_image":{"id":32069970788492,"product_id":7278857683084,"position":1,"created_at":"2023-09-05T13:34:57+08:00","updated_at":"2025-06-05T13:59:47+08:00","alt":"QIDI PA12-CF 3D printer filament spool","width":1600,"height":1600,"src":"\/\/qidi3d.com\/cdn\/shop\/files\/PA12-CF.jpg?v=1749103187","variant_ids":[41888469778572]},"available":true,"name":"PA12-CF Filament - CHINA","public_title":"CHINA","options":["CHINA"],"price":8910,"weight":1400,"compare_at_price":9900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"QIDI PA12-CF 3D printer filament spool","id":24437597307020,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/qidi3d.com\/cdn\/shop\/files\/PA12-CF.jpg?v=1749103187"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

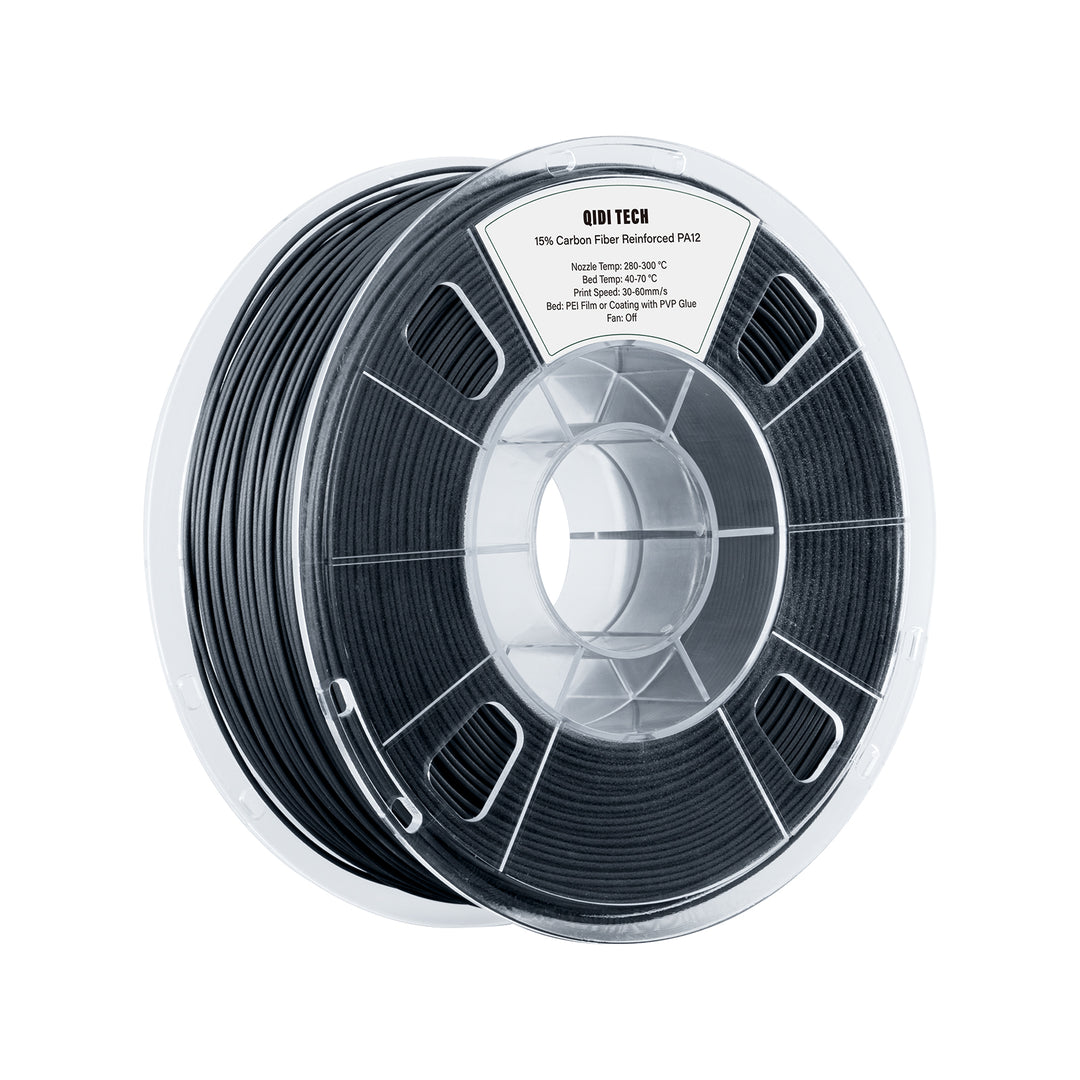

QIDI PA12-CF 3D Printer Filament

It greatly improves the mechanical properties and heat resistance of the material, and releases the internal stress during the printing process through the fiber mesh structure, resulting in good dimensional stability of the printed part and no warpage.

Temperature and Humidity Resistance

QIDI TECH PA12-CF filaments have strong tensile and flexural strength in both wet and dry conditions.

Display of PA12-CF Prints

QIDI PA12-CF has a low coefficient of friction, self-lubricating properties and excellent wear resistance, which can easily meet all kinds of high-strength gears or industrial applications with high wear requirements.

Accessory Compatibility

	Recommended	Not Recommended
Build Plate	QIDI PEI Plate, HF Plate and Smooth Plate	PC Plate
Hotend	Hardened Steel Nozzle ( 0.4 / 0.6 / 0.8 mm) Bimetal Nozzle ( 0.4 / 0.6 / 0.8 mm)	Brass/Copper plated Nozzle (0.2/0.4/0.6/0.8 mm)
Glue	PVP glue/ 3D LAC adhesive spray	/

Recommended Printing Settings
Drying Settings (Blast Drying Oven)	80-100 °C，4-6 h
Printing and Keeping Container's Humidity	< 15% RH (Sealed, with Desiccant)
Nozzle Temperature	280 - 300 °C
Bed Temperature (with Glue)	40-70 °C
Printing Speed	< 30-120 mm/s

Physical Properties
Density	1.09 g/cm³
Water absorption	2.46 %
Heat Deflection Temperature	78.4 °C
Melting Temperature	167 °C
Melt Index	5.1 g/10 min

Mechanical Properties
Tensile Strength	76.95±1.17 MPa
Breaking Elongation Rate	1.63±0.10 %
Bending Modulus	3915.93±195.30 MPa
Bending Strength	114.12±1.93 MPa
Impact Strength	10.01±0.83 KJ/m2

Downloads

Filament TDS

Filament MSDS

Printing Tips

• PA12-CF material is very sensitive to moisture. Printing after absorbing moisture will result in oozing, extruding with bubbles and rough surface appearance, thus reducing print quality. It is recommended that put the filament into a dry box (humidity below 15%) immediately after opening the QIDI PAHT-CF vacuum foil bag for printing. Please put the unused filament back into the original aluminum foil bag for sealed storage.
• After the printing, the printed part can be annealed to further improve the strength of QIDI PAHT-CF print part. Annealing conditions: place the printed part at 80-100°C for 4-6 hours and cool to room temperature naturally.
For more details please refer to: Filament Guide on WIKI.

Vacuum Aluminum Foil Packaging

According to the test, the water vapor transmission rate of ordinary sealed packaging is 4.76%, while the water vapor transmission rate of vacuum aluminum foil packaging we use is only 0.014%. It can be seen that vacuum aluminum foil packaging is more water-resistant.
